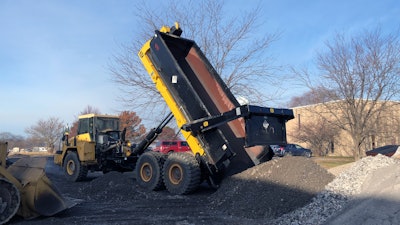

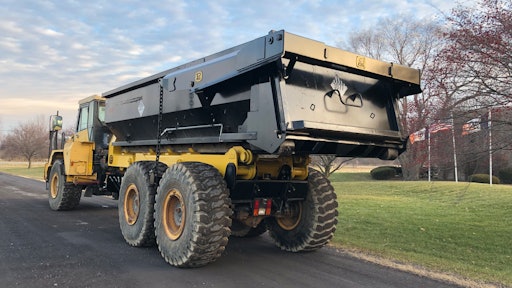

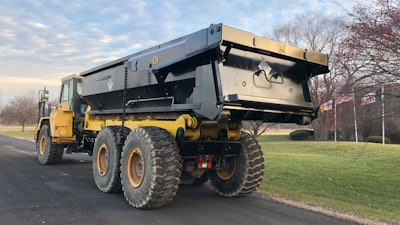

The new version of the Autogate Tailgate is specifically for off-highway trucks and roll-off containers that require a 100% positive seal. This new design can be paired with PHIL’s proprietary fluidic seal material to create a water-tight seal that contains liquid materials within an off-highway truck body or roll-off container when environmental regulations or local laws make even slight spillage undesirable.
- Can be designed for practically any size off-highway truck or roll-off container
- Traditional scissors-style mechanism paired with a simple yet robust outrigger provides maximum opening clearance at full dump
- Positively locks into place in closed position and will not open under normal conditions without body or container entering the “dump” mode
- Tailgate can pivot inward as the sidearm and over-center locking mechanism compressively lock the rear tailgate into place
- Optional body seals, fluidic seals and cushion pads available
- Can be built up for sideboards in 1-in. increments from 6- to 40 in. to increase volumetric capacity of the truck body
