Concrete Saws & Blades Spotlight August 2009

Nearly every concrete contractor owns a concrete saw. Here’s an overview of equipment and abrasives for jobsite cutting.

1250618323564 10292082

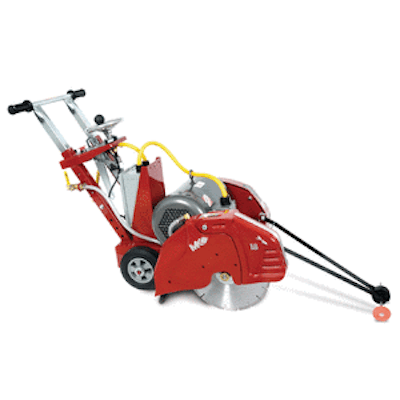

18-in. Dry Cutting Walk-Behind Saw



MK Diamond's 18-in. dry cutting walk-behind saw features a 10-hp Baldor 3 phase electric motor and is available with 230V or 460V. It has a 6 5/8-in. cutting depth and a 14-in. dry cutting blade. The cast-aluminum hinged blade guard mounts on the left- or right-hand side of the saw and cuts within 2 in. of wall.



MK Diamond Products, Inc.

633F4 Gas-powered Concrete Chain Saw



The 633F4 gas-powered concrete chain saw comes standard with the F4 package, featuring a FORCE4 sprocket, guidebar and diamond chain.

  • Able to plunge cut up to 16 in. deep and make square openings with no overcuts
  • 101cc, 6.5-hp, two-stroke, single-cylinder, air-cooled engine
  • Features slurry-resistant crankshaft sealing, dust-proof air filtration and water-resistant electronic ignition
  • Wet cutting system reduces hazardous dust
  • Built-in WallWalker provides leverage to reduce fatigue and extend chain life.



ICS, Blount Int'l. Inc.

Core Cut CC150-EE Green Saw



The Core Cut CC150-EE early entry green walk-behind concrete saw is powered by a 4.8-hp Honda GX-160 engine.

  • 6-in. blade with 1-in. arbor offers a maximum cutting depth of 1 3/16 in.
  • Patent-pending skid plate adjustment mechanism
  • Mechanical blade depth control
  • Includes two front polyurethane, non-marking wheels for greater stability



Diamond Products

CS 536163-2 Pneumatic Concrete Chain Saw



The CS 536163-2 plunge cuts up to 15 in. deep in one pass and quickly cuts mechanical openings, irregular shapes and square corners up to 14 in. with no overcuts.

  • Suited for cutting reinforced concrete, brick, block, concrete pipe and natural stone
  • Standard AirFORCE F4 diamond saw chains offer larger diamond segments and 50% greater tensile strength
  • 10- or 15-in.-long guidebars with laser-cut internal water channels keep the bar lubricated and help to remove slurry
  • 6.5-hp air motor has a no load speed of 5,700 rpm



CS Unitec, Inc.

CS8 Random Crack Saw



The CS8 Random Crack saw is designed to follow random crack patterns in concrete surfaces.

  • Produces smooth-sided cuts for proper crack filling
  • 8-in.-diameter cutting blades
  • 11-hp Honda engine
  • Center-mounted blade configuration for easy pivot
  • Infinitely adjustable blade height control



General Equipment

Cylinder Assemblies



  • Each cylinder assembly comes complete with piston, rings, pin and clips
  • Assemblies to fit Stihl, Husqvarna, and Partner models
  • Compatible plugs, gasket sets, crankshafts, crankshaft bearings and sprocket bearings also available



Stens Corporation

Diamond Blades & Core Bits



EDCO now offers a complete line of diamond blades to complement its product offerings. Standard quality up to Premium Pro level diamond blades are available for all EDCO products. These blades can cut concrete, asphalt, masonry materials or tile. High-speed blades, crack saw blades and other specialty blades are all available.



EDCO Equipment Development Co.

FS1C-18 Floor Saw



The FS1C-18 Floor Saw features a low center of gravity and weight distribution arranged to eliminate flex and vibration during operation.

  • Cutting depth gauge calibrated for blade size
  • Heavy-duty, two piece, hinged, spring-tensioned blade guard features positive up or down positioning and mounts to either side
  • Features include an adjustable guiding handle, fluted, removable water manifolds that deliver up to 5 gpm and an optional water tank conversion kit



MBW Inc.

K 3000 Electric Cut-n-Break



The K 3000 Electric Cut-n-Break is able to cut in stages through walls up to 16 in. thick, making it suited for window and door openings, crack chasing, joint repair and more.

  • Sliding guard can be positioned to flush cut
  • 12V, 15-amp electric motor
  • Wet cutting system supplies enough water to suppress dust but not cause excessive slurry
  • Includes Elgard overload protection and SoftStart for gradual starting



Husqvarna Construction Products

Saw Devil CSP3



The Saw Devil CSP3 self-propelled concrete saw is ideal for parking lots, driveways, streets, floors and other building and restoration projects. Features include: hydrostatic drive delivered by a triple V-Belt configuration; weighted, self-locking blade crank; heavy-duty front 4-in. wheeled guide and rear cutting pointer; and optional water pump. The CSP3 accepts 14- to 20-in. blades for maximum depth cuts up to 7 5/8 in. Engine options include: 13-hp Honda with cyclone air clearner, 18-hp Honda Twin and 20-hp Honda -both with remote cyclone air cleaners, and 16-hp Briggs & Stratton Vanguard.



Stone Construction Equip. Inc.

Shoxx G13



The Shoxx G13 blade is designed to cut hard materials without spalling. With its trapezoid shape of the G13's 16 segments it has a special feature of a 20% reduction in vibration compared to a standard blade. A range of Shoxx cup wheels is also available to help increase the yield. The wheels include the Z U5, Z A5 and the C E5, which are made using segments welded by electro-induction.



Shoxx Technology

Side Winder II Diamond Blades



  • Available in 12- and 14-in. models
  • Ribbed core reduces friction and heat while providing faster cutting and application versatility
  • T-shape diamond segment design enhances fast cutting performance
  • Ideal for cured concrete, brick, block, asphalt and green concrete as well as a variety of other materials



Multiquip Inc.

TS 410 and TS 420 Cutquik



The 12-in. TS 410 and 14-in. TS 420 Cutquik cutoff-machines feature the X2 Air Filtration System, which delivers 99.96% clean air to the machine.

  • Anti-vibration system reduces vibration by 43%
  • Advanced engine technology increases fuel efficiency and reduces emissions by 43% compared to previous models
  • IntelliCarb compensating carburetor system
  • ElastroStart starting handle with built-in shock absorber
  • Upright, large-capacity fuel tank with a 20% longer run time



Stihl Inc.
