Spritz CSS-3 Shotcrete System

April 10, 2009

Spritzcss3shotcretesystem 10080382

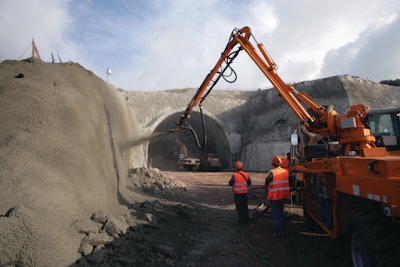

The Spritz shotcrete system CSS-3 resolves any sprayed concrete pumping and distribution problem, both for underground and open-air jobsites.

Fully contained specialized truck unit features a robotic shotcrete arm with three-section Z shape for a maximum vertical reach of 26 meters
Maximum output of 30 m3/h
Fifth-wheel block can rotate 180° on vertical and horizontal planes
Spritz truck features a 75-KW Deutz engine, hydrostatic transmission, mechanical and hydrostatic gearbox, four-wheel drive and independent all-wheel steering
Uniflux EAS 2 (Electronic Additivation System) automatic accelerator and peristaltic pumps allow liquid setting accelerating agents to be precisely metered
