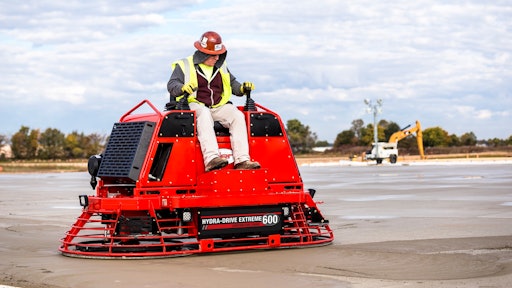

HDX600 Hydra-Drive Extreme Riding Trowel

Allen Engineering's HDX600 Hydra-Drive Extreme Riding Trowel is a hydraulically-controlled, 8-ft. class ride-on power trowel that is powered by a 50-hp Hatz liquid-cooled diesel engine.

January 29, 2020
Allen Engineering Corporation
Hdx600 Js
Allen Engineering Corp Logo 10720441

Allen Engineering's HDX600 Hydra-Drive Extreme Riding Trowel is a hydraulically-controlled, 8-ft. class ride-on power trowel.

  • Turbo charged 50-hp Hatz 3H50TIC liquid-cooled, Tier 4 Final diesel engine
  • Dedicated panning/finishing modes
  • Digital readouts for accurate fuel levels and diagnostics
  • 13-gal. fuel tank
  • Premium Bosch-Rexroth Hydraulic system
  • Intelli-drive system allows the engine and the hydraulics to communicate
  • Bi-lingual digital display shows engine diagnostics (temp, RPM, oil pressure, warnings, etc)
  • Electric (Joystick mounted) single or dual blade pitch controls
  • Rotor Speeds up to 165 rpm
  • Two point, top-mount lifting system
  • Four point tie downs
  • Twin, 46-in. rotors with five bladed spiders
