Blastcrete’s Concrete Pump Attachment Features Hydraulic Squeeze Pump

Blastcrete Equipment Company, manufacturer of concrete mixers, pumps and related products, offers the Model RD6536 Skid Steer Pump Attachment.

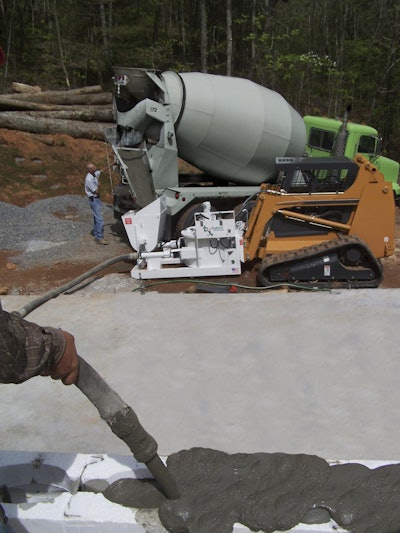

Skid Pump3 565f4eb642343
Blastcrete Logo

Blastcrete Equipment Company, manufacturer of concrete mixers, pumps and related products, offers the Model RD6536 Skid Steer Pump Attachment. Featuring a universal design compatible with any skid steer, the 3-inch hydraulic squeeze pump is ideal for ICF, block fill, form and pour, driveways, basements and various shotcrete applications.

  • Ability to pump grout materials, 3/8-inch shotcrete and 3/4-inch structural concrete mixes
  • Variable speed of 0-25 cubic yards per hour
  • Vertical pumping distance reaches 50 feet with the use of a rubber delivery line, while horizontal distance can reach up to 250 feet
  • A hydraulic agitator is included in the receiving hopper
  • To relieve pressure build-up clogs and eliminate potential damage to the pump, the RD6536 can be run in both forward and reverse
  • Hydraulically powered controls are located on the pump and also operate both agitator and pump speed
  • Weighs in at 2,700 pounds and hydraulic oil requirement is 18 GPM at 3,000 psi
  • 48-inch wide frame (55-inch with receiving hopper) is designed to be narrow enough to fit between the wheel wells of most standard work trucks
  • The unit includes forklift pockets to allow quick and easy loading and unloading from the transport vehicle
  • The steel-constructed unit is designed to prevent any concrete from coming in contact with the pump’s moving parts, further reducing maintenance concerns and ensuring a long service life.
  • The primary wear part, the rubber pumping tube, can be easily replaced on the jobsite in about 20 minutes
  • Cleanup on the RD6536 squeeze pump is fast and hassle-free by using just water and a sponge ball
