The DustBoss Atom Mobile Dust Suppression System

The compact, diesel-powered DustBoss Atom can fit in the back of your pickup truck and features forklift pockets on the front and back.
The compact, diesel-powered DustBoss Atom can fit in the back of your pickup truck and features forklift pockets on the front and back.
BossTek
Bosstek Logo

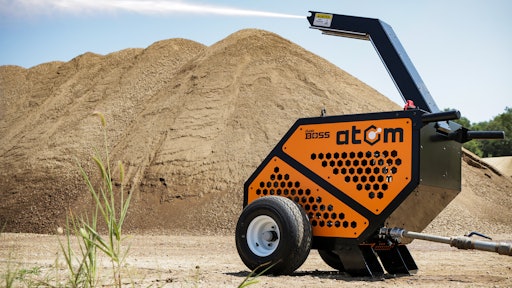

The DustBoss Atom from BossTek is a fan-less, self-contained design that incorporates remote control and 4G LTE telematics technologies as standard equipment to deliver an unprecedented combination of suppression and monitoring.  The compact, diesel-powered unit fits in the back of a pickup truck, so it can be quickly positioned and relocated to address dust-generating activity directly at the source. It also has forklift pockets on the front and back. With a throw of 100 feet (30 meters), the adjustable elevation angle and user-defined oscillation allow precise aiming of a powerful dust-capturing mist, which is comprised of millions of droplets per minute in the range of 50-200 microns.

“After more than 15 years of designing purpose-built dust suppression equipment in a variety of sizes and styles, we found that some companies expressed a desired for a smaller, more maneuverable unit, with a lower price point,” says BossTek VP of Sales Mike Lewis.  “This machine is well suited to demolition projects, recycling operations, transfer stations, bulk material processing, ports/shipping applications, quarrying/crushing, biomass handling, concrete curing and even indoor operations where significant air movement may be undesirable.”


The DustBoss Atom also includes hand-held remote controls.The DustBoss Atom also includes hand-held remote controls.BossTekThe Atom features a Kohler KD440 power plant - a 9.1 horsepower air-cooled engine that meets Tier-IV Final emissions standards and complies with California CARB requirements. A unique air filtration system increases performance and lengthens service intervals, even in dusty environments.  Its integrated fuel injection system and overhead cam design are coupled with a cast iron cylinder liner for consistent, reliable service. The engine and pump subassembly is secured by four isolation mounts that minimize vibration transfer to the frame. The high-impact stainless steel nozzle features a quick disconnect for easy replacement.

“In addition to its compact size, what really sets this unit apart from other designs is the built-in communications features,” adds Lewis. “The hand-held remote controls virtually every function, and the telematics provide a web-based platform to monitor status and streamline service and support.

“The system tracks engine hours, operating temperature, and average run time per day and provides readouts of suggested maintenance,” he says.  “It can be programmed to monitor machine location via GPS, and can even troubleshoot remotely or ‘geo-fence’ each unit so it’ll only function within the specified locations. The telematics are so sophisticated that users can remotely disable machines if needed.”

Programmable by GPS, you can set the DustBoss Atom to ONLY function where you want it to.Programmable by GPS, you can set the DustBoss Atom to ONLY function where you want it to.BossTek

The system is fitted with a Cat Pumps 56G1 water pump that requires just 40 PSI (0.344 BAR) minimum inlet pressure, connected by a 1-in. cam-and-groove quick-disconnect fitting. Considered one of the world’s most dependable high-pressure reciprocating triplex plunger and piston pump design, the unit has specially-formulated seals and high density, polished ceramic plungers that are optimized for long service life and durability.  It also includes protection against pressure drops: if a low-pressure situation is detected, the unit shuts down to prevent damage to the pump or overheating of the engine.
