Ligchine SCREEDSAVER MAX PLUS

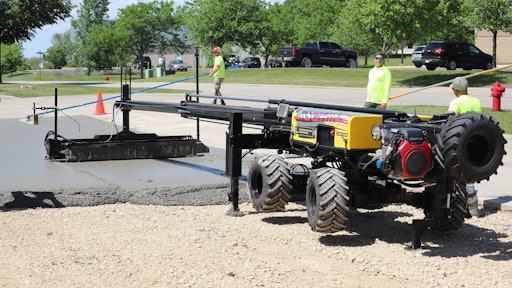

The 4,800-lb. SCREEDSAVER MAX PLUS screed features the SwingBoom pivoting frame that enables up to 5 ft. 3 in. of side-to-side screed head movement with a pivoting boom member. It offers 17-ft. boom extension with a 10-ft. high-performance screed head.

SCREEDSAVER MAX PLUS
Ligchine
Ligchine Beyond Level

The SCREEDSAVER MAX PLUS screed builds upon the SCREEDSAVER MAX machine, which was originally released in 2012 and has become one of the most popular mid-range screeds since that time.

The SCREEDSAVER MAX PLUS adds new features such as a built-in diagnostic touchscreen, Topcon laser receivers, a totally revised wireless remote-control system, a quiet Honda gasoline engine, and the patent-pending SWINGBOOM frame.

SCREEDSAVERMAXPLUSCR2Three Quarters ViewThe Ligchine SCREEDSAVER MAX PLUS.Ligchine“With the development of the MAX PLUS screed, we wanted to build upon the key strengths of the original SCREEDSAVER MAX, while enhancing the machine with many of the key innovations we have pioneered over the years,” says Pete Ligman, co-founder and head of Ligchine product development efforts.

He continues, “The most significant new development is the SWINGBOOM pivoting frame, which provides unmatched screed head maneuverability, resulting in reduced machine movements necessary to screed a given area. This will increase speed and efficiency while maintaining accuracy. We have also built in many other key features that should result in this machine being an absolute game changer in the mid-range screed market.”

Features

  • SCREEDSAVERMAXPLUS2Y8A3464CleanLigchineLeveling Systems: Standard 2D laser leveling for grade, slope, dual slope - Topcon LS-B110, or the optional Topcon 3D mmGPS satellite control or LPS robotic for contoured concrete paving
  • Built-in diagnostic touchscreen
  • Parallel to the pour driving capable: Yes - 90-degree manual pivoting undercarriage drive frame
  • Machine operation control: 100% wireless remote control, Scanreco
  • Transport with pickup truck and trailer: Yes

Learn more: Ligchine Debuts SCREEDSAVER MAX PLUS at 2021 World of Concrete

Specifications:

  • SCREEDSAVERMAXPLUSCR2ClosedThe Ligchine SCREEDSAVER MAX PLUS closed.LigchineWidth: 6 ft. 3 in. (1.9 m)
  • Length: 15 ft. 10 in. (4.8 m)
  • Height: 5 ft. 7 in. (1.7 m)
  • Weight: 4,800 lbs. (2,177 kg.)
  • Screed head length: 10 ft. (3 m)
  • Drive system (hydraulic): 2-wheel proportional drive
  • Screed coverage: 17 ft. (5.18 m) boom extension with a 10 ft. (3 m) high-performance screed head
  • SwingBoom pivoting frame: Up to 5 ft. 3 in. (1.6 m) of side-to-side screed head movement with a pivoting boom member.
  • Engine: Honda iGX800, electronic fuel injection, air-cooled, four-stroke, 24.9 hp (18.5kW)
