Aquajet Aqua Centralizer for Tunnel and Pipe Applications

The Aqua Centralizer works in conjunction with Aquajet’s Aqua Cutter Hydrodemolition robots and high-pressure Aqua Power Packs to provide strategic concrete removal in roadbuilding, wastewater and industrial plant applications

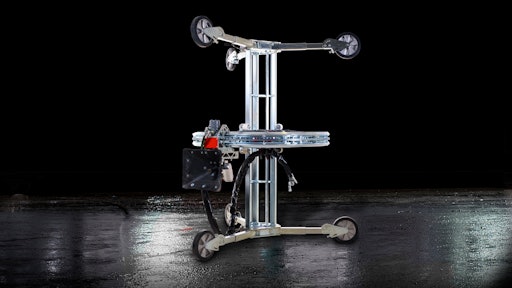

Aquajet Aqua Centralizer 1
Screen Shot 2020 07 24 At 10 22 45 Am

Aquajet's Aqua Centralizer is used to clean or remove concrete, paint, rust and coatings along an entire section of horizontal, vertical or inclined tunnels and pipes.

  • Works in conjunction with Aquajet’s Aqua Cutter Hydrodemolition robots and high-pressure Aqua Power Packs
  • Incorporates technology from the Circular Power Head attachment for concrete removal and cleaning applications
  • 360-degree ring and robotic power head with a 25-degree adjustable lance angle and variable stroke oscillation
  • Power head with adjustable working angles from 0 to 360 degrees
  • Automatic indexing along the spine rail
  • Modified Aqua Spine at base of unit can span up to 19.7 ft. between a pair of triple support wheels with adjustable caster wheels designed for 4.9- to 9.8-ft.-diameter tunnels
  • Ring and circular power head can be mounted in front of the support wheels
  • Centralizer rings are available in three sizes: 3.2 ft. for 4.9- to 6.5-ft.-diameter tunnels; 4.9 ft. for 6.5- to 8.2-ft. tunnels; and 6.5 ft. for 8.2- to 9.8-ft. tunnels
  • Power head adjusts up to 10 in.
  • Power head can be reversed for removing concrete on the outside of pillars and pipes
