Brokk, a global manufacturer of remote-controlled demolition robots has introduced the Brokk Descaler, a specially designed solution for breaking out refractory, coating and build-up in a number of areas in the preheater tower, primarily cement and alumina plants.
With a telescopic boom for outstanding reach and remote-controlled maneuvering, the Brokk Descaler revolutionizes the working method for tearing out overhead material in preheater towers.
Health and safety is a constant challenge and an important issue for cement plants around the world. The hazardous work of tearing out refractory and build-up in cement kilns and coolers has previously put many workers in danger and by using remote-controlled Brokk robots, safety has improved immensely. However, similar issues with overhead refractory and coating has been the case in the preheater towers for years, but with no safe and efficient solution.
Conventional methods often involve manual pre-inspection before sending workers in on scaffoldings with handheld tools making it both critical and time consuming. There are many advantages for the productivity of the plant with a Brokk Descaler. With a quick installation, faster demolition and no need to install scaffolding the shut down time is notably reduced. And since the Brokk Descaler does not require people to go inside the vessel, work can commence already at 80°C.
Today, the workers are not only exposed to the risk of falling debris but also the silica dust that gets into the body and skin. Furthermore, the vibration from handheld tools is a known problem and causes “white fingers.” The Brokk Descaler places the operators outside of the vessel and therefore, risks like this have either been eliminated or significantly reduced.
“Brokk robots have been removing people from overhead coating and refractory in cement kilns around the world for ages. With this solution we can also protect the workers in the preheater tower, where the risk of falling debris is as obvious as in a kiln.” says Joakim Furtenback, international sales director at Brokk AB, Sweden.

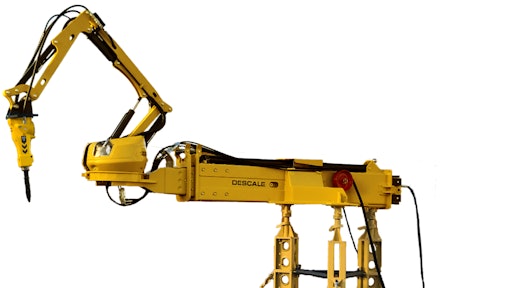

The Brokk Descaler evolved from a standard Brokk robot and is modified to fit the application in preheater towers without compromising on power. The telescopic boom is extendable by one or two sections that allows for descaling in vessels up to 9,5 m in diameter.
As preheater towers are of different designs and the build-up appears in various locations depending on design, raw material and other factors, a flexible solution is required. The Brokk Descaler was developed to be used for a variety of vessels and is easy to mobilize to any location in the tower as it can be transported in most passenger lifts. Installation can be completed in less than three hours and once installed, the operator can safely overview the work from outside of the vessel through hatches, which allows for precise and controlled demolition.
Hundreds of tons of overhead refractory can be removed with zero physical contact and at a much faster pace than doing the same task manually. This ensures high productivity, as well as safety for the workers. Ultimately, a safer and more efficient worksite.
Increased productivity:
- Reduce shut down time – improve production capacity
- Install at any level in less than 3 hours
- Move quickly between platforms in lift
Safety:
- Safe descaling with zero people inside
- Access from different positions with optimal view for operator
- Minimize workers being exposed to dust
Applications
Anywhere there is build-up there is work for the Brokk Descaler:
- Pyrotop
- Cyclones
- Calciners
- Roof of gas risers
- Kiln inlets
- ”Goose neck”
- Alumina calciners, silos etc.
