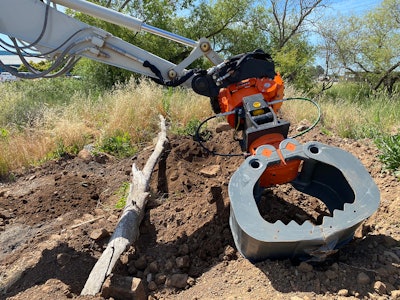

Werk-Brau, a manufacturer of vehicle attachments, offers Nox tiltrotators for excavators. The attachment provides 360 degrees of endless rotation with a tilt angle of 2 x 50 degrees, allowing versatility with a wide range of attachments. These tools transform excavators into multi-functional carriers that work in deep trenches, under or between existing pipes and tubes and in other confined space applications.
Designed for use with fork tines, grabs, grippers, buckets and more, this technology allows operators to complete projects without repositioning the carrier. A range of Werk-Brau NOX tiltrotators are available for excavators in various classes and categories, from 3-25 tons.
With integrated hydraulics and no components protruding from the compact design, the risk of damaging hydraulic cylinders, hoses or other components is reduced on the jobsite. The product has minimal wear parts and only two fittings that require grease. A cast housing and industrial valves provide stability and long service life. An elliptical rotary actuator provides a low overall height and a narrow width with no cylinders. The wider tilt angle allows flexibility during use. A low-maintenance worm drive is designed for rugged tasks.
For safety, the D-Lock coupler locks the front and rear pins and does not require a safety pin. D-Lock couplers comply with ISO 13031, Australian standard AS4772-2008, European EN474 standard and all major contractor policies.
The NOXPROP+ control system provides control of the NOX tiltrotator, quick coupler and mounted attachments. Retrofittable for excavators, the attached touchscreen allows individual assignment of functions and menu navigation. Integrated GPS, LTE, Bluetooth and WiFi antennas link the machine to the digital working world. When combined with SmartTag, the system can be connected to fleet management systems. NOXPROP+ is pre-equipped for future assistance functions such as dynamic scales, 2D height and depth display, BPM and fleet management or copilot systems.
