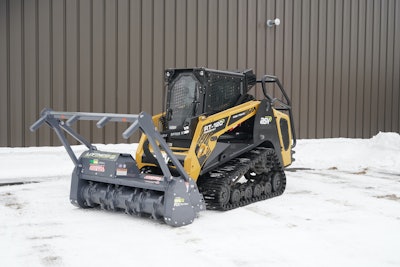

Loftness has updated its Battle Ax S Series mulching head with new features for durability and serviceability. Designed for skid steers and compact track loaders with 28 to 62.9 gpm hydraulic flow and 50 to 150 hydraulic hp, the S Series now includes a reversible secondary shear bar in the two-stage cutting chamber to allow a fresh cutting edge.
After all four edges of the shear bar have been exhausted, the component can be replaced via a bolt-on mechanism. Previously, the secondary shear bar was welded on the front bumper, and only the primary shear bar was replaceable. Next, the S Series is available with a replaceable wear liner, which helps protect the drum from wear when working in abrasive conditions. It also has a bolt-in design for replacement.
Other design enhancements, such as a new recessed belt cover with welded body reinforcements, have been included in the latest update to protect against damage and promote reliability.
The Battle Ax can be used in the vegetation management industry for its rotor design, which features built-in depth gauges. These depth gauges function similarly to raker teeth on chain saws to prevent the attachment from engaging too much material at one time. This design is for managing the amount of material being fed into the attachment. The Battle Ax is also known for its ability to thoroughly process material into consistent, well-sized particles because of the two-stage cutting chamber.
