Danuser’s EP Auger System for backhoes, mini skid steers and excavators feature a planetary gear drive that is up to 42% stronger than the competition with greater torque for drilling through hard-compacted surfaces. It is available in a wide array of models, ranging from 6 to 35 gpm and from 1,500 to 3,500 psi.
Features
- Accessible check and fill plugs
- Swings from a knuckle to allow left to right, forward to back leveling
- Most vehicles with 72-in. or greater hinge pin height may use standard 4-ft. length augers. Hinge pin heights 71-in. or shorter require 3-ft. length augers maximum
- The output spindle is manufactured as a single piece, allowing Danuser to offer a lifetime warranty covering output spindle pullout

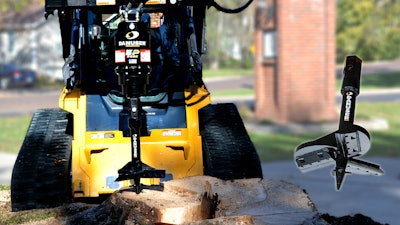

The EP Auger System is compatible with Danuser’s new Stump Auger, a standard 2-in. hex auger attachment that planes away stumps without requiring large, specialized equipment. A threaded pilot digs into the stump and large cutting blades then shave the stump away. The large cutting blades are reversible for more cutting life.
The stump auger is available in 10-in. and 16-in. diameters. The 10-in. model can run on auger units with 1,700 ft.-lbs. or more of torque and the 16-in. model can run on auger units with 3,000 ft.-lbs. or more of torque. Complete stump removal is achieved by overlapping planing locations.
Specifications
- 2-in. hex collar
- Hardened steel cutting blades
- Reversible/indexable for more cutting per blade
- Hardened steel pilot with cutting blades
- 10-in. and 16-in. diameter options
- 10-in. for use with 1,700 ft.-lbs. of torque and higher drive units
- 16-in. for use with 3,000 ft.-lbs. of torque and higher drive units
- Weight
- 10-in. – 50 lbs.
- 16-in. – 70 lbs.
- Overall length
- 27-in. for both sizes.
*Updated on August 24, 2022
