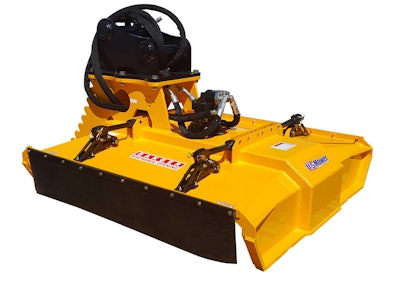

EX60SHDR-25T Excavator Rotary Mower

US Mower's EX60SHDR-25T rotary mower attachment is built with high strength steel construction with increased height for better lift on parent machines from 40,000 to 55,000 lb.

Ex60
Us Mower Logo

US Mower's EX60SHDR-25T rotary mower attachment is built with high strength steel construction with increased height for better lift on parent machines from 40,000 to 55,000 lb.

  • Two 12-lb. rotary blades, slotted nut and dowel lock pin
  • 3,000 psi pressure and return hoses with flat face couplers
  • 1/4-in. by 100-in. case drain line w/ 3/8-in. flat face coupler
  • Gear motor matched to available oil flow up to 2,700 psi.
  • Optional piston motor for system pressures over 2,700 psi with high pressure hose kit
  • Machined 4140 steel spindle
  • Double leaf blade bar T-1 or JFE 2 in. thick by 6 5/8 in. wide by 31.5 in. long
  • Optional T-1 or JFE blade disc carrier 1-in. thick
  • HARDOX skid shoes
  • Polyester powder coat high visibility yellow finish with UV protection
  • Cutting width: 60 in.
  • Cutting capacity: 8 in.
  • Required auxiliary flow: 35 to 55 gpm
  • Weight: approximately 1,600 lb.
