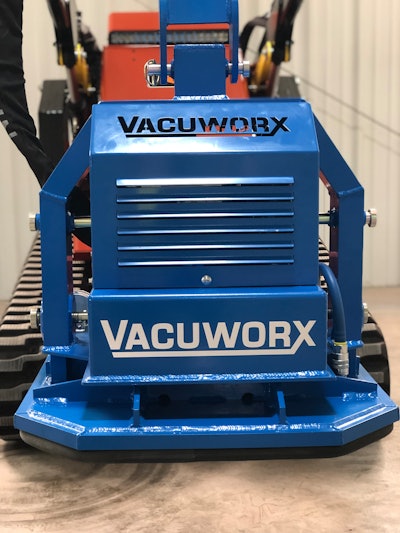

The next-generation SL 2 Subcompact Vacuum Lifting System has an improved hydraulic system and modular pads to work with more machines and in more applications.
- Available with standard 24” x 24” pad or 12” x 36” pad for handling more narrow trench cuts, plus other sizes upon request
- Base unit and pad weigh approximately 100 lbs.
- Can be used on carriers with or without a case drain
- Maintains a lifting capacity up to 2,700 lbs.
- Features quick-connect hydraulic hoses and a factory preset flow control valve

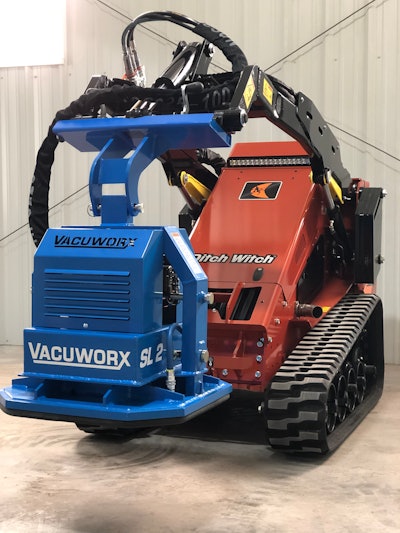

- Mounting assembly options for mini/walk-behind subcompact equipment or standard skid steer-type machines
- Compatible with small excavators, backhoes and cranes using the clevis hook connection
- Requires a minimum 10 gpm with maximum 3,000 psi
- Tough Seal pad seal used on vacuum pad to cover the material to be lifted and create the necessary suction
- Vacuum seal holds until operator activates the release, even in the event of a power failure
- Manual or wireless remote control
[VIDEO] Vacuworx Modifies SL2 System to Make it More Modular

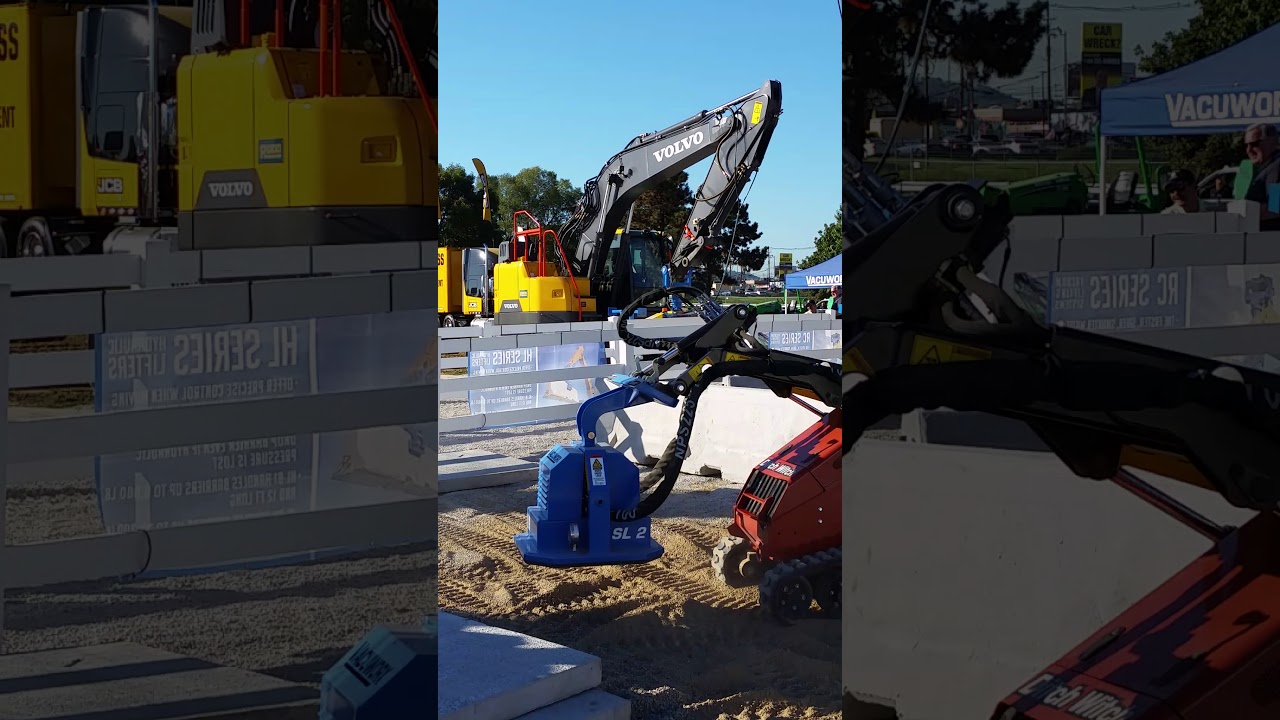

[VIDEO] Vacuworx SL 2 Operation Guide
[Brochure] Vacuworx SL 2 Subcompact Vacuum Lifting System
Request More Information
Fill out the form below to request more information about Vacuworx Next-generation SL 2 Subcompact Vacuum Lifting System
