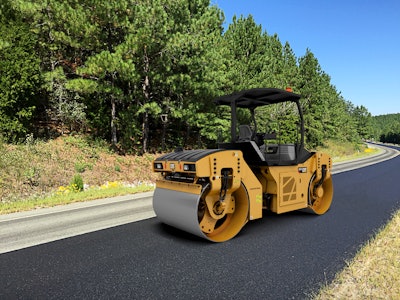

Caterpillar CB10 Asphalt Compactor with Oscillatory Vibration System

10-metric-ton CB10 combines vertical vibration on the front drum with new oscillation technology on the rear drum

CB10 582202db50d3d
Caterpill 10210679

The CB10 is a 10-metric-ton asphalt compactor that builds on features offered by its CB54B predecessor, plus can be equipped with a combination of oscillatory and vibratory drums. The design combines Caterpillar’s vertical vibration on the front drum with new oscillation technology on the rear drum.

  • Front drum available in two amplitude, five amplitude or Versa-Vibe systems that provides initial compaction
  • Rear drum with oscillatory system utilizes pod-style eccentric weight technology for optimal smoothness and density
  • Durable power-transmission employs a belt-drive system for more reliable operation
  • Hardened drum shell offers long-term strength on a variety of mix designs and delivers optimal mat texture, density and smoothness
  • Provides maximum visibility and control, smooth powertrain operation and refinements to the water spray system, service access and lighting package
  • Infra-red mat temperature sensors integrated into the front and rear bumpers enable greater protection and performance

Spec Sheet: Caterpillar CB10 Asphalt Compactor

[Video] Features of the Cat CB10 Asphalt Roller with Oscillatory Drum Technology

[Video] Caterpillar CB10 Asphalt Compactor with Oscillation Technology
