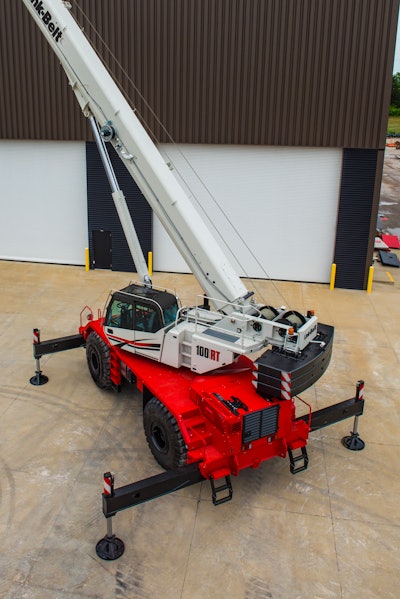

Link-Belt's 100RT features the longest full power boom currently available. This is Link-Belt's first rough terrain crane to utilize new fly erection technology. The fly assist cylinder makes erecting and stowing the fly a one-person job and minimize work at height. The first The crane will begin shipment in the first quarter of 2019.
- Pulse 2.0 operating system with remote software updates via Wi-Fi provides live view of working area with color-coded quadrants
- V-CALC (Variable Confined Area Lifting Capacities) system with 12 different outrigger configurations with real time 360-degree charts
- Asymmetrical outrigger options
- Five section 40.6 to 155 ft. full-power formed boom
- Two-piece 35- to 58-ft. on-board offsettable fly available; manually offsets at 2, 15, 30 and 45 degrees
- 16-ft. lattice insert extension for max tip height 237 ft.
- 6-speed transmission
- Cummins Stage V QSB 6.7L 232-hp diesel engine (dual compliant for Tier 4 and Stage V)
- Four 29.5x25 tires mounted on axles fixed to the carrier via greaseless 4-link suspension
- 24-volt electrical system
- New cab design
- Maximum winch line pull: 23,632 lb.
