Liebherr LR 1700-1.0 Crawler Crane

Liebherr introduces the new 700 ton LR 1700-1.0 crawler crane, which features a crawler crane length of 11.35 meters, a maximum main boom length of 165 meters, a six cylinder diesel engine and the LICCON2 control system.

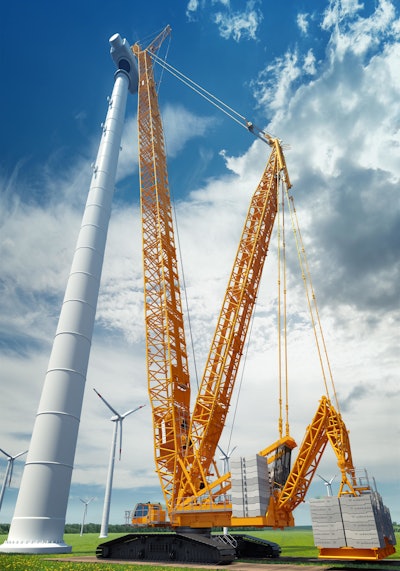

Liebherr Lr1700 1 0 300dpi
Liebherr USA, Co.
Liebherr Logo 10602014

The new LR 1700-1.0 from Liebherr combines the benefits of economical transport of 600 ton class crawler cranes with the performance of 750 ton class lattice boom cranes while featuring all the innovations of Liebherr’s crawler crane developments from the last few years.

Great mobility and compact dimensions

  • Redesigned base machine for the new LR 1700-1.0 based on the dimensions of the LR 1600/2
  • Track width: 8.7 meters
  • Crawler crane length: 11.35 meters
  • Optional Quick Connection, which can reduce the transport weight of the slewing platform to 42 tons
  • All the transport units for the base machine, including the pivot section, are no more than three meters in width
  • H lattice sections on the main boom are 3.5 meters, but can be supplied exclusively with three meter wide lattice sections
  • Predecessors components (S sections for the main boom, the luffing jib, the 600 t head, several winches, hook blocks, ballast slabs and the runner) can be used for the new LR 1700-1.0

High performance for industry and wind power jobs

  • Base machine delivers between 10 and 15 percent more lifting capacity
  • The 3.5 meter H lattice sections at the bottom of the main boom improve the lateral stability of the system
  • Maximum main boom length of 165 meters using additional H sections
  • Robust steelwork for the crawler carriers
  • Increased size of the rollers
  • Four-fold drive
  • Six cylinder diesel engine (400 kilowatts / 544 brake horsepower)

The very latest derrick system with modular ballast trailer

  • V-frame, a hydraulically adjustable folding frame which enables the ballast radius to be adjusted between 13 and 21 meters
  • VarioTray, a small ballast pallet, which can be unbolted quickly and easily
  • Modular 'MWagon' ballast trailer
  • LICCON2 control system, which delivers extended set-up facilities and monitored erection
