Tadano GR-1300XL-4 Rough Terrain Crane

Tadano announces the new GR-1300XL-4 rough terrain crane for the North American market, featuring a 290 horsepower Cummins B6.7 engine, Tadano Smart Chart, and a six-section boom with an extended reach of 183.7 feet.

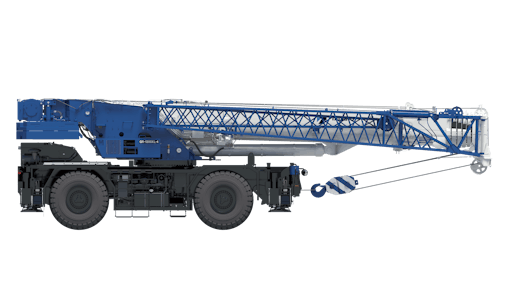

Gr1300 Xl4 006
Tadano 11080557

The Tadano Group launched the GR-1300XL-4 rough terrain crane for the North American market. The new offering is a part of the 130 ton weight class and consists of a six-section boom with an extended reach of 183.7 feet using a reliable telescoping pinning system.

Tadano GR-1300XL-4 main specifications:

  • Maximum lifting capacity: 130 tons
  • Boom length: 40.0 - 183.7 feet
  • JIB length: 33.8 feet / 59.1 feet
  • Maximum lifting for the boom is 182.1 feet and a maximum JIB height of 237.9 feet
  • Maximum load radius for the boom is 175.0 feet and a maximum JIB radius of 205.0 feet
  • Crane length is about 48 feet 2 2/3 inches, width is 10 feet 10 1/2 inches and a height of 13 feet
  • Compact carrier length of 28 feet
  • Two-axle system
  • Self removable counterweight

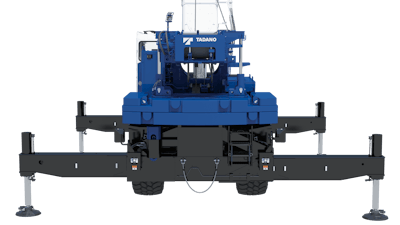

Gr1300 Xl4 011

Additional features:

  • 290 horsepower Cummins B6.7 engine
  • Tadano Smart Chart
  • 20-degree tiltable cab, controlled by a Tadano AML-E2 system
  • Tadano View System, a three camera network
  • Tadano Clearance Sonar system, a blind spot warning and obstacle alert system
  • Environmental features, including Fuel Monitoring System, ECO-Mode and Positive Control
  • Pump disconnect function, leads to reduction in fuel consumption
  • HELLO-NET telematics web information service
  • HELLO-DATA LINK
