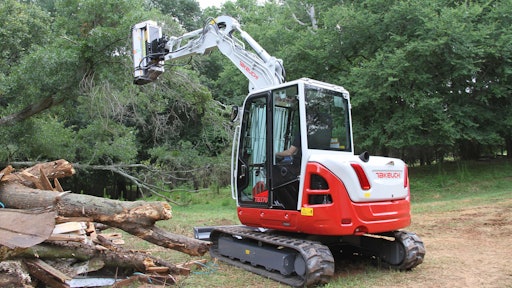

TB370 Compact Hydraulic Excavator

Takeuchi's TB370 compact hydraulic excavator is the first in Takeuchi's 300 series compact excavator line.

September 24, 2020

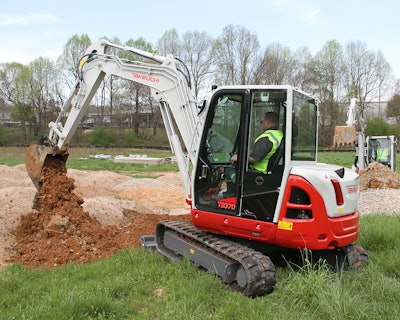

Takeuchi Tb370 Training Center

The 14,793-lb. TB370 compact excavator has a 56.8-hp Kubota turbocharged diesel engine that is highly efficient and powerful for tackling the toughest jobs. Inside the spacious cab is an 8-in. color LCD multifunction touchscreen display, jog dial and one-touch controls. The Takeuchi Fleet Management (TFM) telematics system makes remote monitoring possible.

56.8-hp Kubota V2607-CR-TE5B turbocharged, Tier 4 Final diesel engine with 157 ft.-lbs. of torque
13-ft. 4.8-in. dig depth and 21-ft. 11.3-in. maximum reach
Bucket breakout force of 14,613 lbs.
Three standard auxiliary circuits (including a high-flow primary circuit) improve versatility and enable operation of a variety of attachments
Load-sensing hydraulic system provides over 31 gpm of auxiliary hydraulic flow
8-in. touchscreen multi-function color monitor with integrated air conditioning and radio functions
Automotive-styled interior
Intuitive jog dial and switch panel

Fill out the form below to request more information about TB370 Compact Hydraulic Excavator
