Cat 910, 914 and 920 Compact Wheel Loaders

Cat adds new features and improvements to the compact wheel loaders and the 4.4 engine.

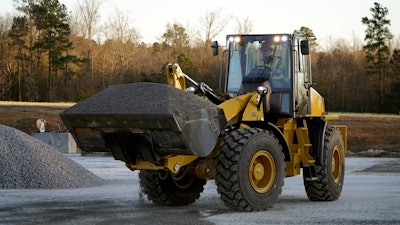

Cat 920 Cwl Dsc2156
Caterpill 10210679

Building on the success of the Cat M Series Compact Wheel Loader range, Caterpillar has added three new models to the lineup, each with significant design enhancements: 910, 914, and 920, the latter replacing the 918M. New options are available, and certain features available only as options on former models are now standard. All the new models are available in a high-lift configuration, and the 914 and 920 are available in an aggregate-handling configuration.

  • Cat C3.6 engine has the same torque performance as the previous Cat 4.4, and provides a modest increase in rated gross power, increasing from 101 to 111 hp for the 910 and 914, and from 117 to 122 hp for the 920
  • Up to 5% gains in fuel efficiency with the new engine, and the C3.6 meets EU Stage V and U.S. EPA Tier 4 Final emission standards
  • Fuel tank capacity also is increased by 2.9 gal.f or extended work cycles
  • Reversing fan option with  a three-position rocker switch in the cab allows the system to be turned off, operate in an automatic mode or be momentarily activated by the operator
  • Rotary-sensor-kickout system with fork and bucket settings available on the 910 and 914
  • Fork and bucket settings along with cylinder snubbing included in the 920's standard kickout system
  • 914 can now be equipped with the Caterpillar Fusion Coupler System to provide enhanced durability and attachment compatibility
  • New auxiliary lines available (from mid-lift arm down to the coupler) for all models when the three- or four-valve option is selected
  • Efficient, high-illumination LED lights available as an option for working/roading lights and underhood service lights
  • Rear guard available for the 914 and 920 models used in harsh environments
  • In-cab USB power ports provide low-voltage power for charging cell phone and other compatible electronic devices

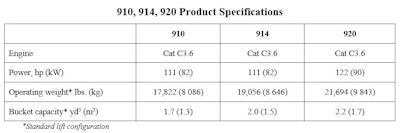

Cat Wheel Loader Specs
