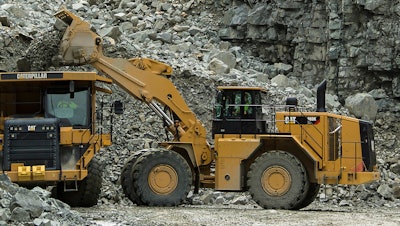

The 988K XE with switched reluctance (SR) technology is the first wheel loader offered by Caterpillar with a high-efficiency electric drive system. The new loader increases efficiency by 25% overall and by up to 49% in face-loading applications as compared to the 988K. At the same time, Caterpillar production studies report it delivers up to 10% higher productivity in load-and-carry applications. The unit maintains the C18 ACERT engine (which powers the generator), mechanical dropbox, driveline and axles from the 988K for consistent, trouble-free operation.
[VIDEO] Caterpillar 988K XE Electric Drive Wheel Loader Introduction
- Bucket capacities from 6.2 to 17 cu. yds.
- Rated standard and high lift payload reaches 12.5 tons when working with face material and 16 tons with loose material
- Advansys Series Ground Engaging Tools (GET) protect bucket components and reduce operating costs
- Standard version performance matched for three-pass loading of the 42.6-ton 770G and four-pass loading of the 51-ton 772 off-highway truck
- High-lift configuration delivers five-pass loading of the 61-ton 773G and six-pass loading of the 70.5-ton 775G
- Single speed range with virtual gears to help control machine ground speed and deliver smooth direction shifts
- Onboard Vital Information Management System (VIMS) provides operator with data such as real-time fuel consumption and fuel efficiency via an interactive touch screen display
- Standard Cat Product Link offers remote data monitoring through VisionLink
- Offers Cat Production Measurement and optional Tire Pressure Monitoring System
- Efficient electric drive design increases engine life by up to 3,500 hours, and the SR drive motor, generator and inverter are built to last through the second engine life with minimum maintenance
