Enerpac SCJ-50 Self-locking Cube Jack

Enerpac Self-Locking Cube Jack offers 56-ton capacity in a compact, alternative solution to traditional climbing jacks

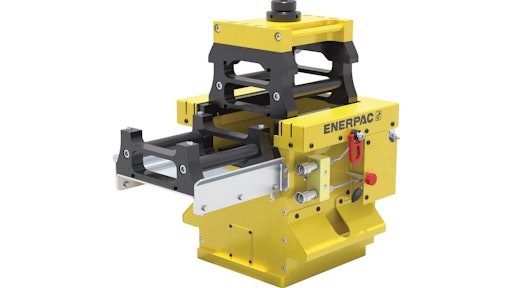

Enerpac Scj50 Cube Jack Main
Enerpac Logo

Enerpac's SCJ-50 Self-Locking Cube Jack is a compact, portable hydraulic solution for incremental lifting and lowering of heavy loads. The jack uses a base lifting frame and self-aligning, lightweight steel cribbing blocks for high-capacity and stabilized lifting. The incremental system mechanically locks the load as each cribbing block is manually added or removed. Once the lock engages, the lift cylinder retracts and another cribbing block can be added or removed.

  • Up to 11 35-lb. steel cribbing blocks can be stacked onto base frame
  • Operates with standard 10,000 psi hydraulic pressure
  • Compatible with standard Enerpac pumps
  • Maximum height: 79 in.
  • Minimum initial jacking height: 19.4 in.
  • Base frame footprint: 19.8 in. by 16.9 in.
