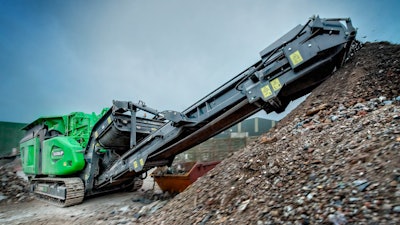

Evoquip 230 Crusher

Rapid setup time and intuitive control system enable an operator to be crushing minutes after unloading the machine

February 15, 2018

Terex Corporation

Evo Quip Cobra 230, Jaw Crusher, C&d Skip Waste (28)

EvoQuip, a Terex brand, will showcase the newest addition to its impact crushing range, the Cobra 230, in booth #1858 at World of Asphalt from March 6-8, 2018. The unit's rapid setup time and intuitive control system enable an operator to be crushing minutes after unloading the machine. The operator can also adjust the crusher setting easily without the need for any tools using the user-friendly hydraulic assist that is standard on the machine.

3.4-cu.-yd. hopper wiih integrated pre-screen for fines removal
Feeder speed auto regulates based on crusher load
Impact crusher includes a 34" x 24" crusher inlet, 33-in.-wide by 34-in. rotor diameter, two independent aprons and hydraulic overload protection
Fuel-efficient, high-performance direct drive system
Potential output up to 275 tph
275-hp Volvo Tier 4 Final engine
Simple, intuitive push-button operation
Ground-level access to the engine, hydraulics, service and refueling points
Hinged radiator pack and hinged diesel tank enhance serviceability
Compact footprint for easy transport and for work in urban areas

Fill out the form below to request more information about Evoquip 230 Crusher
