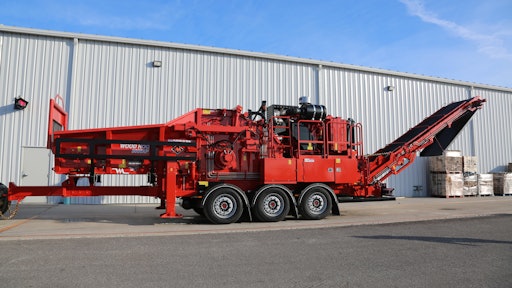

Morbark 3000X Wood Hog Horizontal Grinder

The 3000X grinder is designed to be modular and available in multiple configurations for various applications.

March 17, 2020

Morbark 3000 Xp Wood Hog Horizontal Grinder

The 3000X Wood Hog horizontal grinder can be built as a fifth-wheel/dual-axle unit (3000X) or pintle hitch/tri-axle configuration.

Engine options from 350 to 577 hp or available with electric power
Variable-speed infeed system consists of one 34-in.-diameter top compression feed roll with internal drive and a 12-ft. 4-in.-long by 57.5-in.-wide live floor designed to accept both WD120 and slat chain
Sloped infeed sides improve operator sight lines for more efficient loading of material
Plate and pin-style, up-turn hammermill system measures 32" x 58.5" and has 18 double-edged replaceable inserts and 18 rakers
Discharge system consists of a hydraulically driven, horizontal 42" x 14'2" aggregate belt conveyor discharging onto a 36-in.-wide stacking conveyor with hydraulic fold for transport
Optional magnetic head drum for ferrous metal removal
Top-load system with four grates includes a hydraulic hinged door for quick and easy access
Morbark Integrated Control System (MICS) allows the operator to automatically adjust feed rates and monitor pressures and feed wheel position to maximize production and engine efficiency
Standard width of 8 ft. 2 in.
