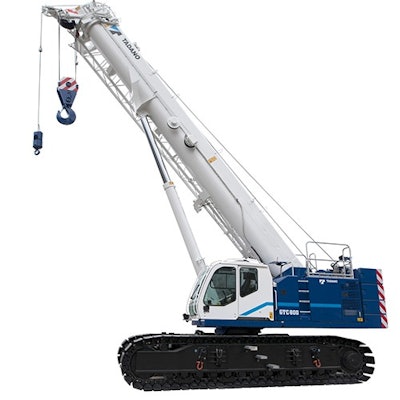

Tadano GTC-600 and GTC-800 Crawler Cranes with OPTI-WIDTH

Tadano Gtc 800 58ed542d9f92b
Tadano 11080557

The 66-ton-capacity GTC-600 and 88-ton-capacity GTC-800 telescopic boom crawler cranes feature the OPTI-WIDTH track positioning system, which allows both symmetrical and asymmetrical track positions during reduced track width operation to provide optimum lifting performance at any track width.

  • GTC-600 has a full-power, four-section, 37.7- to 118.1-ft. hydraulic boom, and the GTC-800 has a five-section, 37.8- to 141.1-ft. hydraulic boom
  • 33.1/58.1-ft. bi-fold jib for maximum tip heights of 182.1 and 198 ft.
  • Optional 8.2-ft. heavy lift jib with maximum capacities of 22.4 and 23.5 tons
  • Include two boom extension modes and the AML-C Rated Capacity Indicator
  • Operating load charts available for up to 4° slope with automatic out of level load chart switching
  • Ooptional boom-mounted auger system can be mounted to the boom base section or to the second stage of the boom for variable radius drilling
  • 310-hp Cummins QSB6.7 Tier 4 Final diesel engines and load-sensing, power-controlled hydraulic systems
