Vermeer XR2 Vacuum Excavator Is First to Separate Liquids and Solids

Vermeer’s XR2 vacuum excavator is an industry first with a shaker deck that separates liquids and solids.

• Excavated material fed through onboard deceleration tank that exits through an airlock onto shaker deck
• Shaker deck features auto-leveling up to a 10% grade

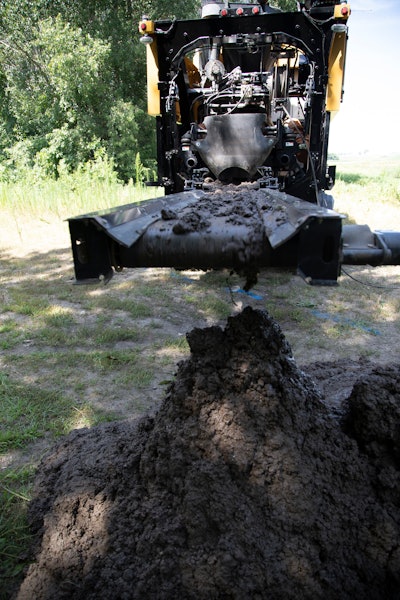

• Solid material moved by onboard, foldable 14-ft. conveyor and discharged at rear of machine
• Used slurry water pumped into one of four 500-gal. liquid storage tanks
• 1,500 gal. of freshwater storage capacity
• Delivers up to 150 minutes of wand time at a rate of 10 gpm
• Adjustable pressure want with 3,000-psi max output
• 6-in. diameter hose produces up to 3,400 cfm of suction
• 21-ft. boom with 260 degrees of swing
• Reverse flow feature to dislodge large chunks of material from hose
• Remote controls most functions
• Power takeoff (PTO) automatically transitions power from vacuum system to truck drive system
• Kenworth T880 truck body with Allison automatic transmission and Chelsea PTO
