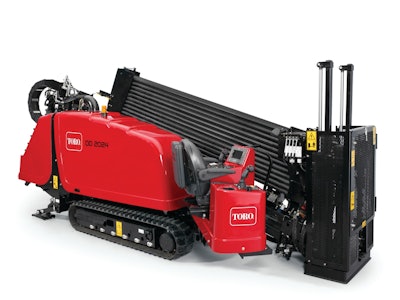

The DD2024 horizontal directional drill combines 20,000 lbs of pullback force and 2,400 ft.-lb. of rotary torque in a compact footprint of 52 in. wide, 207 in. long and 74 in. tall.
- 74-hp Cummins B3.3 turbocharged diesel engine
- Quad rack-and-pinion carrier design spreads the load evenly for smooth and stable movement
- Onboard mud pump flows up to 30 gpm
- Dual rear stabilizers adjust independently to safely secure the unit
- Choice of single- or dual-stick drilling controls
- Floating carriage offers two speeds, including a 120-fpm fast mode
- Forward-mounted track drive motors with planetary gear reduction provide optimal traction in all types of ground conditions
- Uses a remote exit side lock-out system and a Zap Alert system to notify the operator in the event of an electric line strike
- Operator station includes a backlit LCD screen that monitors a full range of system functions
- Optional TDOS-1 operating system with SmartTouch allows pipe handling functions to be performed using a single input on the joystick in SmartTouch operating mode
