Lone Star LST1G+HDA Geotechnical Drill

The Lone Star LST1G+HDA Geotechnical Drill is designed for standard penetration tests and soil sampling in nearly any soil.

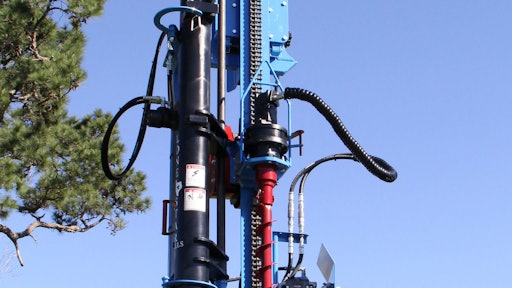

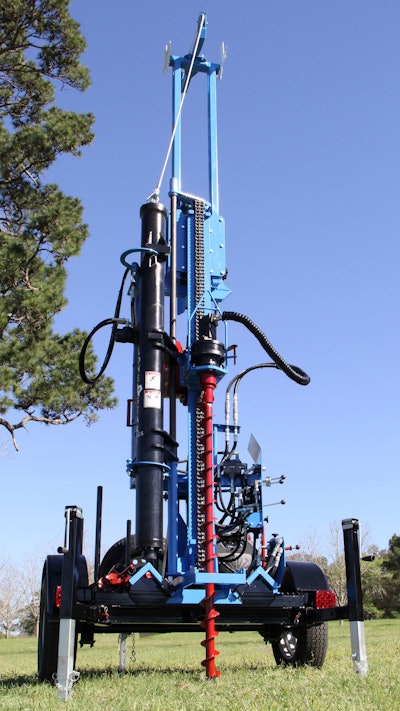

Little Beaver Lone Star Drills Lst1 G+hda Set Up
Little Beaver Logo Hor

The Lone Star LST1G+HDA Geotechnical Drill is designed for standard penetration testes and soil sampling in nearly any soil.

  • 140-lb. automatic safety hammer
  • Drill 6-in. boreholes down to 100 ft.
  • 27-hp Kohler EFI gas engine
  • 3,000 psi hydraulic system
  • 12.5 gpm hydraulic power pack achieves 100 rpm
  • Hydraulic winch with 1,500 lb. of pull
  • Mounted on a single-axle trailer that can be towed behind a small or standard sized truck
  • New tracked version to debut at CONEXPO-CON/AGG 2020
  • Bypass flow control system for adjustments to push-down force
  • Use with Little Beaver split spoon samplers and AWJ drilling rod for core sampling or geotechnical testing
  • Variety of auger options available including solid stem and hollow stem augers
  • Capable of an 8,500-lb. lifting capacity
  • Hinged shuttle plate
  • Optional mud pump, swivel and bit
Request More Information
Fill out the form below to request more information about Lone Star LST1G+HDA Geotechnical Drill
