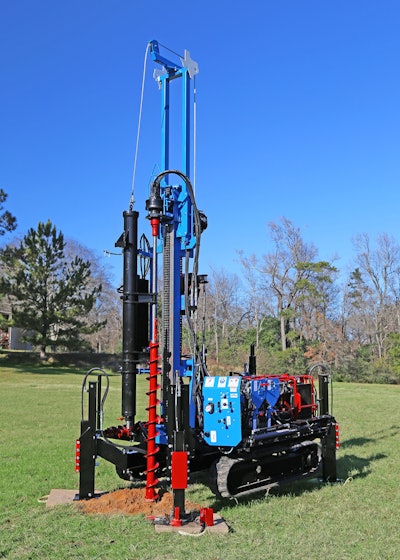

Lone Star LSGT+HDA Remote-controlled Tracked Drill

Provides precise and easy to operate drilling in geotechnical and soil sampling applications down to 100 ft.

Lone Star Drills Lsgt+hda 1
Lone Star Logo All Blue Lbv Co

The LSGT+HDA with a 140-lb. automatic SPT hammer allows for precise and easy to operate drilling in geotechnical and soil sampling applications down to 100 ft.

  • Tracks and remote-controlled feature enable positioning in hard-to-reach areas and locations with delicate underfoot conditions
  • Ground pressure of 3.8 psi
  • Hydraulic leveling via a cylinder on each corner and a telescoping jack allows for operation on uneven ground
  • Solid stem augers come in 3- to 8-in. diameters, while hollow stem augers come in 6- and 8-in. diameters and can drill to 60 ft.
  • Standard configuration allows for dry auger boring or an optional mud pump, swivel and bit enable mud rotary boring
  • 8,500-lb. lifting capacity for easy removal of augers and extensions
  • Hinged shuttle plate allows operator to swing the rotary out of the way for easy access to the bore hole
  • Features a 27-hp Kohler EFI gas engine and 3,000-psi hydraulic system
  • 12.5-gpm hydraulic power pack achieves a rotary speed of 100 rpm
  • Hydraulic winch generates 1,500 lbs. of pull for raising the automatic hammer and sampling string
  • Includes a high-strength welded steel frame, rotary and swivel and easy access to all crucial maintenance and greasing points
  • Optional anchor kit enables a push-down force up to 8,500 lbs.
  • Can be used with Little Beaver split spoon samplers and AWJ drilling rod
