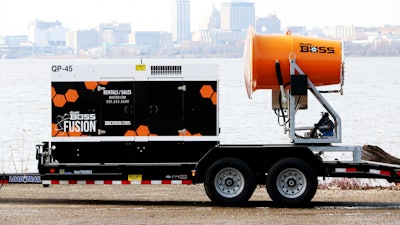

BossTek's DustBoss DB-60 Fusion dust suppression system features a Tier 4 Final generator that features a dual-containment fuel cell, heavy gauge lockable enclosure and oversized brushless alternator. The DB-60 Fusion drives pressurized water through a circular stainless steel manifold with 30 atomizing spray nozzles, then launches millions of tiny droplets with a powerful fan that produces 30,000 cfm of air flow. Atomized mist droplets of 50 to 200 microns in size are thrown out in a 200-ft. cone at an adjustable 0- to 50-degree elevation angle, capturing airborne dust particles and dragging them to the ground.
- 25-hp electric motor
- Delivers up to 62,800 sq. ft. of coverage
- Heavy-duty 4-cycle indirect injection diesel engine
- Sound attenuation for noise reduction
- Multi-voltage switch with utility power outlet in all voltage modes
- Digital engine/generator controller with single button stop/start
- 80-gal. fuel capacity
- Uses about 23 gpm to avoid pooling and runoff
- Touch screen panel encased in NEMA 3R cabinet; controls oscillation, booster pump, fan and water
- In-line 75 mesh, 200 micron filter
- Can be specified with special filtration to accommodate non-potable water sources
- Variable Frequency Drive (VFD) to precisely adjust fan speed
- Optional dosing pump for precise metering of additives to enhance particle control
