The Toro Company

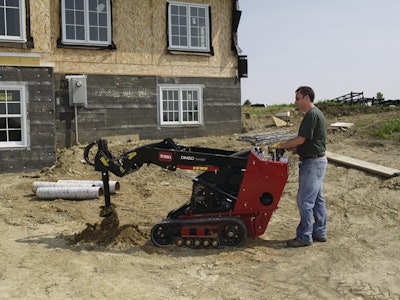

Dingo TX 427

The gas-powered narrow and wide track TX 427 loaders feature 27-hp Kohler engines that deliver added torque for increased pulling and digging force.

  • Narrow-track model has 535-lb. rated operating capacity, 92-in. length, 33.7-in. width and 5.1 psi of ground pressure
  • Wide-track model features a 535-lb. rated operating capacity, 92-in. length, 41-in. width and 3.5-psi ground pressure
  • Models can pump 19-hp flow to attachments for increased productivity in ground-engaging applications
  • Both units are compatible with Toro's compact utility loader attachments





The TX 427 Dingo compact utility loaders feature a 535-lb. rated operating capacity (35% of tip capacity) and a 27-hp Kohler gasoline engine that delivers added torque for increased pulling and digging force. Weighing 2,006 lbs. with standard bucket, the narrow track version has a 92-in. length with bucket and a 33.7-in. width. The 5.9-in. (wide) tracks generate 5.1 psi of ground pressure. The wide track model weighs 2,186 lbs. with standard bucket, yet generates 3.5-psi ground pressure. It has an overall length of 92 in. and a 41-in. wide track setup. Both models have four independent hydraulic pumps that deliver 16.9 gpm to each track, 11.4 gpm to the auxiliary hydraulics and 6 gpm to the loader arm. Auxiliary hydraulics supply a 19-hp flow to the attachment.
