GOMACO Corporation

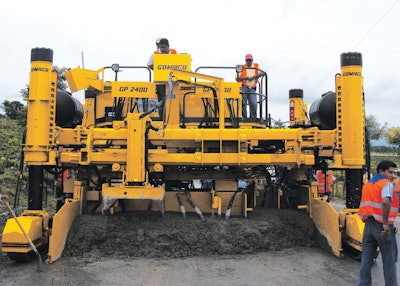

GP-2400 Concrete Paver

The GP-2400 two-track or four-track slipform paver now features the V2 variable-width mold for paving up to 24 ft. wide. With the V2 on board the paver can make 6.5-ft. transitions to form tapered slabs on the go.

  • V2 mold package features hydraulically telescoping rolling frame with dual rollers mounted to the top and bottom of the outer frame tubes and dual power transition adjusters for crown height adjustment
  • Spreader plow with hydraulic vertical movement controls head of concrete in front of V2 sectionalized mold system; proximity switches set length of travel; horizontal and vertical movement can be operated manually or set on automatic
  • Comes standard with 16 vibrator circuits
  • 10-ft. GOMACO series two tracks with two-speed track motors
  • G+ control system with self-diagnostics for grade and steering
  • 174.5-hp Caterpillar 6.6 turbocharged diesel engine
  • Travel speeds up to 105 fpm and variable low speed up to 35 fpm and up to 96 fpm for four-track paver
  • CONEXPO-CON/AGG Booth #51059, 51556

FCP VIDEO: Kevin Klein, vice president of engineering, talks about GOMACO's return to half-width pavers with the GP-2400.
