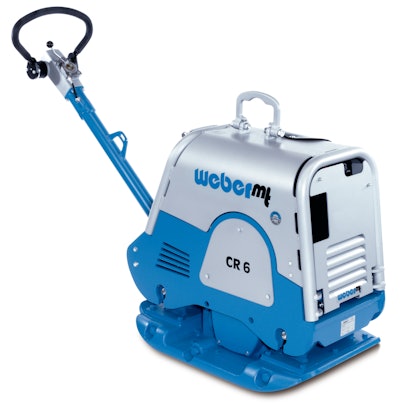

CR 6 H Reversible Soil Compactor

The CR 6 H reversible soil compactor is suited for use in trenches or backfills, road construction, civil engineering or landscaping. Its standard operating width is 24 in., with 18-in. and 28-in. versions available. The 906-lb. unit is equipped with a Hatz diesel engine (type 1 B 40), and delivers a compaction force of 11,250 lbs to the soil. It achieves a compaction depth of up to 24 in. depending on soil conditions. A hydraulic and highly variable shifter is provided for forward and reverse travel. The optional COMPATROL-CCD and -MSM control systems enable job completion using up to 25% fewer compaction passes.
