Bobcat Co. - Doosan Infracore

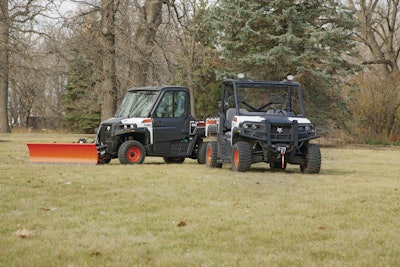

3600 & 3650 Hydrostatic Drive Utility Vehicles

Bobcat's 24.8-hp 3600 and 3650 hydrostatic drive utility vehicles use a single two-speed motor with fewer moving parts for faster acceleration and to maintain top travel speed. The new models are the first Bobcat utility vehicles with heated and air conditioned cabs, and the 3650 is the fist Bobcat utility vehicle with the capacity to operate front-mounted PTO attachments.

  • Diesel engine automatically shuts down if it experiences high engine coolant temperature, low engine oil pressure or high hydraulic oil temperature
  • Composite cargo box resists dents and won't corrode; 1,250-lb. capacity
  • Independent front dual A-arm suspension and rear De Dion suspension; adjustable front and rear suspension
  • Travel control pedal allows operator to change direction without shifting
  • Throttle operates independent of travel control pedal allowing the operator to set engine speed with throttle
  • Dynamic braking and four-wheel disc brakes
  • Top speed: 30 mph
  • Standard skid plate and CV boot

Video: Bobcat 3600/3650 Utility Vehicles



Bobcat 3600:

  • Total vehicle operating capacity: 2,215 lbs.
  • Vehicle towing capacity: 2,000 lbs.
  • Operating weight: 1,955 lbs. without cab

Bobcat 3650:

  • Total vehicle operating capacity: 2,215 lbs.
  • Lift height: 2 ft.
  • Lift capacity: 500 lbs.
  • Vehicle towing capacity: 2,000 lbs.
  • Operating weight: 2,215 lbs. without cab
