Doosan Infracore Construction Equipment

DX63-3 & DX85R-3 Excavators

The upgraded Doosan 6.3-metric-ton DX63-3 conventional tail swing and 8.5-metric-ton DX85R-3 reduced tail swing excavators now include blade float, multi-function joysticks, color instrumentation panel, Auto-Shift drive system and standard rubber tracks. Horsepower on the DX63-3 has increased by 13.5% compared to its predecessor to 59.4, same as the DX85R-3.

  • 59.4-hp, Tier 4 compliant diesel engine with high-pressure common-rail fuel injection system, diesel oxidation catalyst and diesel particulate filter
  • Blade float provides versatility to smoothly grade, level or backfill
  • Standard rubber track undercarriage for minimal surface disruption
  • Auto-Shift travel shifts excavator out of high or low range and back automatically
  • Fingertip boom swing and auxiliary hydraulic functions
  • Independent boom swing control on joysticks
  • Selectable auxiliary flow rates and detent mode
  • Multi-language, deluxe color panel


DX63-3

  • Upper structure shifted rearward on undercarriage
  • 16.1-in. blade height (21% increase over DX60R)
  • Tail swing overhang: 11.6 in.
  • Dig depth: 13 ft. 6 in.
  • Dig reach: 20 ft. 5 in.
  • Dump height: 14 ft.
  • Arm force: 5,767 ft. lbs.
  • Bucket force: 9,731 ft. lbs.
  • Operating weight: 13,770 lbs.

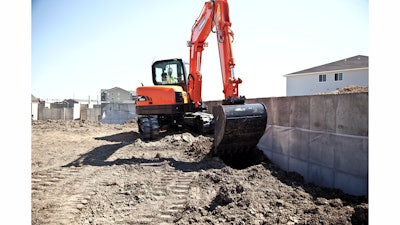

DX85R-3

  • Tail swing overhang: 5.8 in.
  • Dig depth: 15 ft. 6 in.
  • Dig reach: 23 ft. 11 in.
  • Dump height: 16 ft. 5 in.
  • Breakout force: 14,509 ft. lbs. (18% increase over predecessor)
  • Arm force: 8,069 ft. lbs.
  • Width: 91 in.
  • 18,960-lb. operating weight

Brochure: Doosan DX63-3 and DX85R-3 Compact Excavators
