Caterpillar - Cat

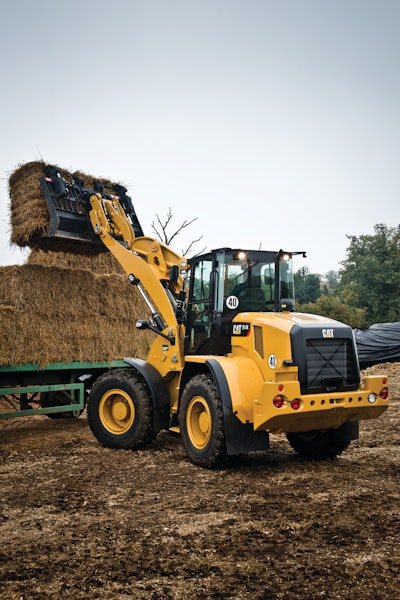

910K and 914K Compact Wheel Loaders

The 15,719-lb. 910K, a new model in the compact wheel loader range, and the 17,915-lb. 914K replace both the 914G2 and IT14G2 due to their optimized Z-bar loader linkage, which provides the digging power of conventional Z-bar machines while providing the parallel lift of an integrated tool carrier. Both models use a 92-net-hp  C3.8B Tier 4 Interim engine, Hystat hydrostatic drive system and newly designed cabs. High-lift booms, couplers and a range of work tools, including Performance Series buckets, are available.

  • Single-plane cooling system uses a hydraulically driven fan or an optional Cat Demand Fan that operates only as required
  • ECO mode regulates high idle for fuel savings and reduced sound levels and to control downhill braking
  • 25-mph top speed with on-the-go shifting between two speed ranges
  • Deluxe cab features two side-entry doors, low-effort electrohydraulic joystick, suspended pedals, tilt steering wheel, air-suspended and heated seat and optional security keypad
  • Multi-function loader-control joystick incorporates transmission and differential-lock controls
  • Integrated Tool Carrier or Cat ISO coupler
  • Optional Road Feature Package with Ride-Control system, variable-speed Creeper Control, Electronic Throttle Lock, Implement-Modulation System and Hystat Aggressiveness Control
  • Load Feature Package includes the Electronic Throttle Lock, Implement Modulation System and Hystat Aggressiveness Control, plus Rimpull Control, Return to Dig and Lift Kickout
