New SV340 is Case's Most Powerful Skid Steer to Date

The SV340 tops Case's skid steer product line with a rated operating capacity of 3,400 lbs. and bucket breakout force of 9,531 lbs. Two high-flow options suit virtually all attachments

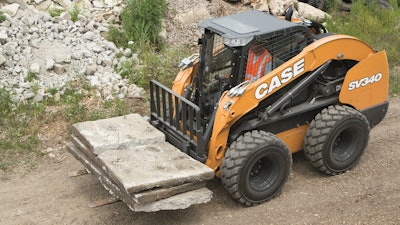

CASE SV340 Forks a 58135064dd65d
Caseconstructionequipment 10072354

Case Construction Equipment's SV340 is the new top of the company's skid steer lineup, with a rated operating capacity of 3,400 lbs. and bucket breakout force of 9,531 lbs.. The new vertical-lift skid steer offers two auxiliary-hydraulics options to its 24.2-gpm standard setup -- high flow at 38.7 gpm and 3,450 psi, and enhanced high flow at 35 gpm and 4,000 psi -- to tailor performance to virtually all attachments.

  • 90-hp FPT engine with Selective Catalytic Reduction (SCR) eliminates the diesel particulate filter and associated regeneration
  • EZ-EH (electro-hydraulic) controls provide nine adjustable speed and control sensitivity settings that can be adjusted on the fly
  • Single rocker switch allows operators to switch between Case "H" operating pattern and ISO pattern controls
  • Push-button Ride Control
  • Wide cab features low-entry threshold for easy access and greater visibility down to the bucket/attachment
  • Heavy-duty 14 X 17.5 tires
  • Compatible with 250 attachments, including the new Case sectional snow pushes, buckets, forks, brooms, rakes and more
  • Routine service points are all located at the rear of the machine
