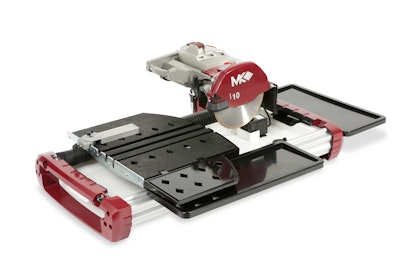

MK Diamond's TX-4 wet cutting tile saw is maintenance free thanks to its innovative bellow system that shields the guide bar and bearing from dust and liquids.
- Water distribution system provides controllable, even flow to both sides of blade
- Detachable rear tray for water containment
- Detachable side water tray slides with table
- Large aluminum cutting table with non-slip rubber surface
- Side extension table for support of larger materials
- Depth of cut: 3.5 in.; 2 3/8 in. at 45 degrees
- Diagonally cut 18-in. materials
- Length of cut: 24 in.
- Blade rpm: 3,500 with a 10-in. blade capacity and 1-in. arbor
- Built-in fully adjustable cutting head allows for miters at 22.5- and 45-degree angles
- Cutting head designed for plunge cutting with blades smaller than 10 in. in diameter
- Hinged blade guard for easy blade changes and maintenance inspection
- 115V/60Hz motor with 1.75 hp
- Air Flow Module specially designed housing protects high torque motor from cutting debris and moisture
- Internal air filter extends motor life
- Included with TX-4: 10-in. wet cutting continuous rim diamond blade, submersible water pump, rip guide with protractor, side table, water nozzles, side and rear water trays
