How to Decide Between an Articulated or Straight Boom Lift for Your Next Project

Each type of boom lift has their own unique attributes that make them better suited for different types of work. Do you know which one is right for your jobsite?

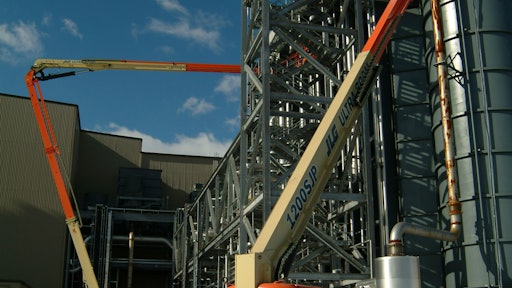

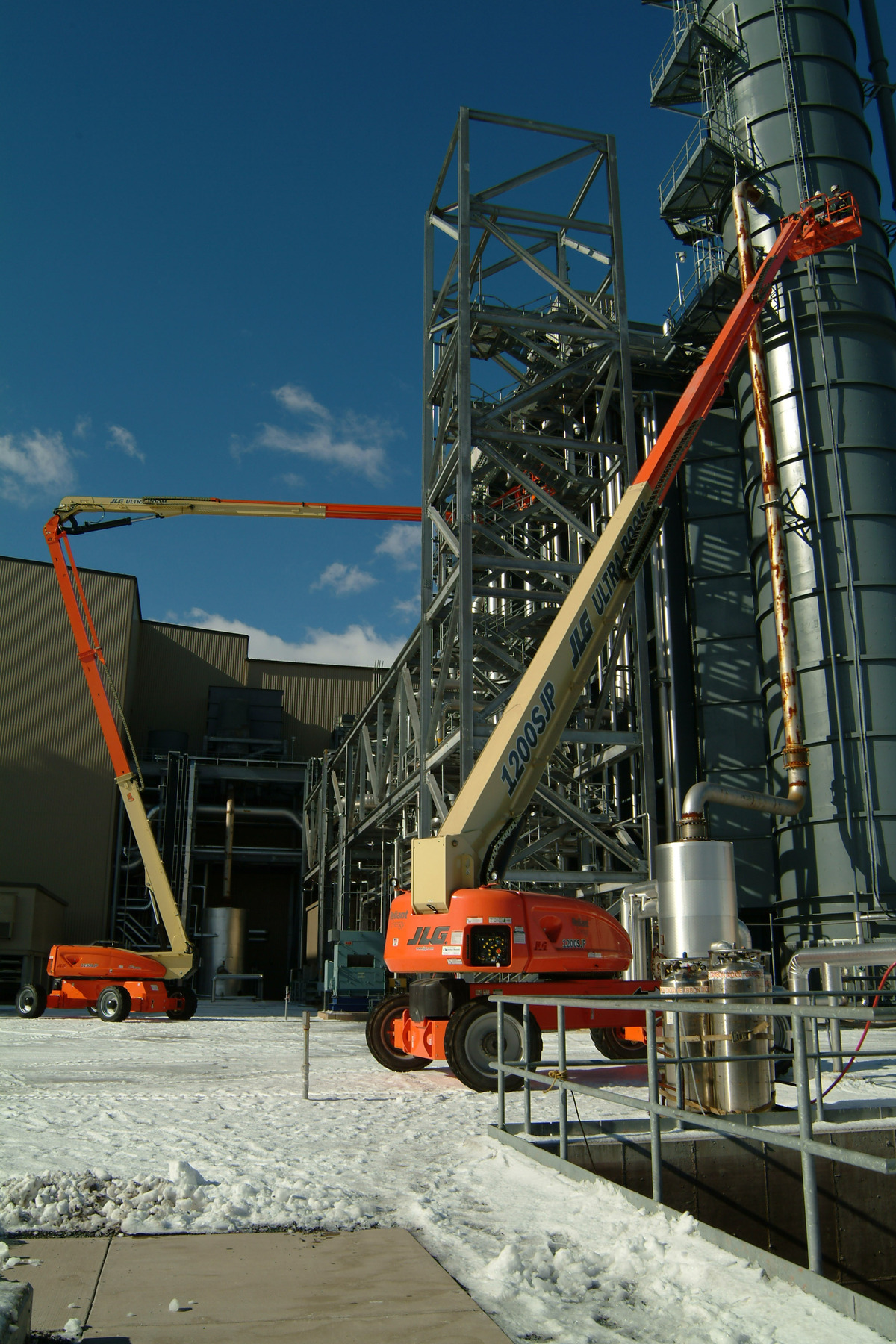

20933 50034
JLG

Boom lifts (also known as mobile elevated work platforms (MEWPs) or cherry pickers) utilize boom sections to position workers and tools to an elevated position for temporary, flexible access work, such as maintenance and construction tasks. This type of equipment comes in different configurations that vary depending on how these machines reach overhead work areas. The two most common configurations of boom lifts are: articulated (articulating, knuckle) and straight (telescopic, telescoping).

Both articulated and straight boom lifts can tackle tough jobs and come in a range of options:

  • Indoor and outdoor
  • Engine- (diesel, gas, LP)electric- or hybrid-powered
  • Tracks versus tires
  • High-capacity versions

Each have their own unique attributes that make them better suited for different types of work. For example, a JLG telescopic boom lets you reach farther, with more capacity, which puts you right where you need to be as simply and efficiently as possible, while JLG articulating boom lifts are ideal for jobs that require you to get "up and over objects.

So, how do you know which type of boom lift is right for your jobsite? Here are some tips to help you make the choice between articulated and straight.

Articulating Booms

The most easily recognizable type of boom lift is articulated due to the boom’s distinctive shape. This type of lift uses multiple pivot points (referred to as joints or knuckles) on the boom sections to give you length and reach, allowing you up-and-over access, as well as vertical reach. The main advantage of this design is that it lets you achieve difficult positioning around obstacles at height. 

Articulating boom lifts have less horizontal outreach than telescopic booms, but because they can reach high and far, these machines provide greater versatility to:

  • Work in space-restricted, tight or narrow access, and/or confined work areas
  • Reach up, over and/or out to access work areas

Telescoping Booms

The mast on a telescopic boom lift extends out in a straight line, by utilizing one or more telescoping boom sections, to give you enough vertical reach to directly access overhead jobsites. This design allows you to take full advantage of the boom’s entire range of horizontal reach

Because of their design, telescoping models do not offer the up-and-over ability to access work at height. And this type of boom lift requires more space to operate with than articulating booms, including plenty of room around the machine’s chassis to make turns and other movements.

But straight boom lifts can typically reach higher than articulating boom lifts, which means these models provide both maximum height and maximum outreach to:

  • Access work from a distance, especially where the terrain or obstacles prevent close access
  • Get into working position quickly.

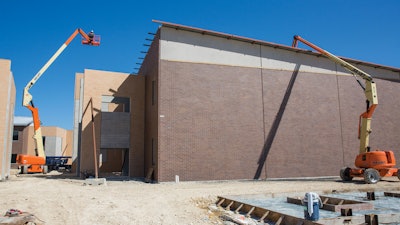

20910 50034JLGTips for Choosing

It’s important to understand the specific work-at-height requirements on particular project before you specify the machines to do the workHere are three things to consider when choosing the right boom lift to match your application:

1. Agility versus Versatility

    a. An articulating boom would be the preferred choice for applications that require agility to reach over or around objects, such as chimneys, ceiling joists or roof trusses, HVAC or electrical fixtures, the floors of a building under construction, or warehouse shelves.

    b. A telescopic boom lift would be the best choice for applications that require the versatility to reach high, like multi-story buildings, or to reach far out at a lower level, like under bridges.

2. Jobsite Conditions

    a. An articulating boom lift generally offers you a more compact footprint and narrow operating profileespecially zero tail swing models, which are ideal for space-restricted jobsites.

    b. telescopic model is more productive on jobsites with plenty of room to turn and space to reach.

3. Outreach

    a. An articulated model can offer you multiple angles and reach to access overhead work.

    b. A telescoping boom lift often can reach higher than an articulating boom lift (depending on specific model and design differences).

The best way to distinguish between these two types is this: Telescopic models are better for getting people and materials into place and holding them there, and articulating versions are better suited for moving people and materials around obstacles and into different positions with agility.

Once you know which type of boom lift is right for your application, visit a manufacturer's website to learn more about their articulated and telescopic boom lifts.

At a Glance: Articulated Vs. Straight Boom Lifts

  • Telescopic lifts are best for getting people and materials into place and holding them there.
  • Articulating booms are best for moving people and materials around obstacles and into different positions with agility.
  • Three considerations to help you choose one or the other: Agility and maneuverability versus reach and spacejobsite conditions, and the work to be completed.
