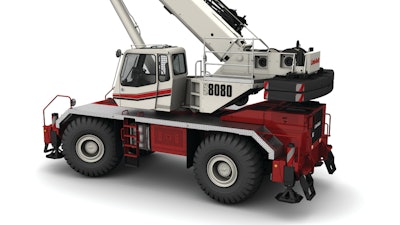

Link-Belt’s 80-ton RTC-8080 Series II rounds out Link-Belt’s line of mid-range rough terrain cranes and offers all of the features that customers and operators have come to expect. Offered in both a fully emission compliant power option as well as an export version that remains Tier III. Both versions of the engine are Cummins QSB 6.7L 270 hp. Notable new features include:
- Remote controlled high intensity boom floodlight
- Standard camera package and aluminum decking
- The extend system which incorporates the two mode telescope proportioning system known as
- Three on-board fly options available that feature four manual offset positions of 2-, 15-, 30-, and 45-degrees. crane.
- Confined Area Lifting Capacity or CALC feature allows for three different outrigger positions (fully extended, intermediate and fully retracted).
- Electronic throttle for improved throttle response
- Hydraulic disc brakes for both service brakes and parking brake
- Single or dual axis joystick controls for smooth, precise control
- Weather proof electrical connectors and relays throughout for outstanding long-term reliability
- Color coded and numbered wiring is protected by a flame retardant polyethylene insulation
- Full lighting package includes cab lights, headlights, turn indication, marker, backup, and stop
- No deducts in capacity when telescoping loads
- Powder-coated tubing is utilized throughout the crane
- Hand-held outrigger controls
- Pre-painted components and plated hardware
- O-ring face sealed hydraulic components with staggered fittings
- Well organized electrical and hydraulic routings throughout
