Chicago Pneumatic CPG 150 and CPG 200 Generators

CPG 150 offers a rated prime power of 150 kVA/120 kW and the CPG 20 delivers a rated prime power of 200 kVA/160 kW.

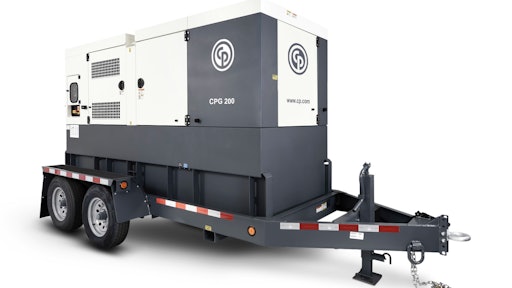

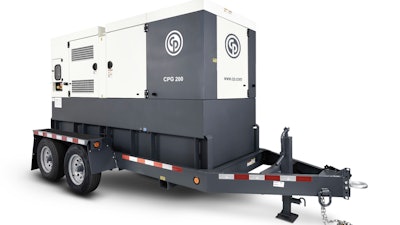

Chicago Pneumatic Cpg 200 Image Edit Right D1
Cp Chicago Pneumatic Black 10893844

The CPG 150 and CPG 200 mobile generators offer dual frequency capabilities and are powered by a John Deere 6068 Tier 4 Final diesel engine.

  • CPG 150 offers a rated prime power of 150 kVA/120 kW and the CPG 200 delivers a rated prime power of 200 kVA/160 kW
  • AREP alternator excitation system allows for optimal starting capability, with stable power in less than six seconds in any weather condition
  • Internal 335-gal. polyethylene fuel tank with an integrated fuel water separator and filter
  • Deep Sea 7310 controller fully diagnostic with a 3-in. display
  • Built with powder coated steel and are weatherproof, corrosion resistant and sound attenuated
  • Standard variable speed fan
  • 110% fluid containment
  • Standard dual axle trailer or optional skid-mounted unit with forklift pockets
  • Large access doors and panels for ease of service
  • Triple-stage air filtration with a safety cartridge and dual-stage fuel filtration
  • Optional paralleling controller includes a touchscreen display and can link up to 32 generators of any size, working in Power Management Mode
