XL 120 Low-Profile HDG Construction Trailer

53- or 55-ft. trailer rated at 110,000 lbs. in 10 ft. and 120,000 lbs. in 16 ft. in the center of the deck

XL 120 HDG Trailer 555f70cd1a0aa

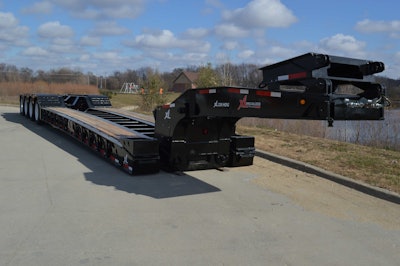

The XL 120 Low-profile Hydraulic Detachable Gooseneck (HDG) trailer is rated at 110,000 lbs. in 10 ft. and 120,000 lbs. in 16 ft. in the center of the deck.

  • 13-ft.-long gooseneck with a 36-in.-long flip neck attachment allows use with a four-axle truck
  • Provides a 146-in. swing clearance, allowing weight to be distributed to the steer axle of the truck
  • Five-position variable ride height allows users to adjust the neck height to fit the load
  • Comes in the standard 53-ft. overall length or a 55-ft. version for longer loads
  • Main deck constructed with four 16-in.-tall, fully cambered I-beams connected with 10- and 4-in. stubbed junior I-beams on 12-in. alternating centers for maximum strength
  • 24-in. loaded deck height with 8 in. of ground clearance
  • Features standard 31-in. front flip ramps, seven bent D-rings and 12 chain drops per side and heavy-duty swing-out outriggers on 24-in. centers
  • 32° rear bridge transition features traction aids for loading
  • Three-axle trailer can be set up as a straight four-axle using a pin-on or as a 3 + 2 using a spreader bar with two axles at the end
