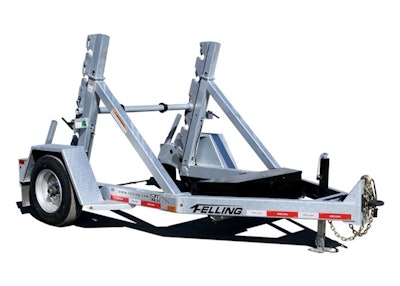

The Felling Trailers’ Utility Cable Reel “R” series model lines have been modified to increase operator safety and ease of use. An update to the model design is the auto-locking reel bar system. The auto-locking reel bar system eliminates the use of pins and brackets; it now utilizes a locking plate system. The R series product line offers payload capacities ranging from 1,740-lbs. to 13,520-lbs. All models have the capability to load up to a 120-in. diameter reel.
Supporting operator and transport safety, the auto-locking reel bar system's locking plates automatically open when lowering the reel to the ground for unloading. As the reel is loaded and raised, the locking plates automatically close to contain the reel bar. Once the reel is raised to transport position, spring-loaded pins automatically lock the slides into place. When the pins lock, they provide visual validation to the operator that the reel is properly locked for transport. A green marker on the spring-loaded pins is only visible when the reel bar is properly secured. The green indicators can be viewed from the rear-view mirrors of the tow vehicle, making transporting conduit, fiber optic cable, inner duct and many other reel-mounted materials a safe and secure experience for operators.
The new R series design was released into production in fall 2022 and will reach full production by the first quarter of 2023. Felling’s R series continues to offer a selection of options and features for utilities and municipalities.
“These are quality-built trailers that provide the versatility and functionality that utility workers need for transporting, deploying, and retrieving material," said Felling Trailers utility and telecom product specialist Mark Rapp.
