Nissan Wooing Work-Truck Fleets with First Single-Cab Titan Pickup

First single cab in full-size Titan’s history offers an 8-ft bed and choice of Cummins 5.0L V8 turbodiesel, with towing capacity to 12,640 lb, or 5.6L gasoline V8

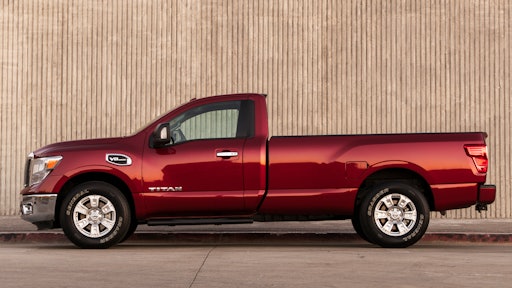

2017 Nissan Titan Sv Single Cab 04
Nissan Logo 10876503

Nissan's 2017 Titan Single Cab, the company’s first single-cab Titan full-size pickup truck, offers an 8-ft. pickup bed on a boxed ladder-frame chassis, and is designed as an entry point in the commercial fleet work truck markets.

The truck comes with a choice of 5.6L Endurance V8 gasoline engine (390 hp and 394 lbs.-ft. of torque) or a Cummins 5.0L V8 turbodiesel (310 hp and 555 lbs.-ft. of torque). Diesel-equipped models feature an Aisin 6-speed automatic transmission and V8 gasoline-engine versions use a 7-speed automatic transmission. The Single Cab tops the line’s towing capacity – with Cummins diesel power – at 12,640 lbs.

Along with a choice of 4x4 and 4x2 drive configurations, two entry-grade trim levels, S and SV, will be available for Titan XD and Titan Single Cabs.

The Titan Single Cab’s wheelbase is about a foot shorter than the crew cab. The standard Titan crew cab has a 5.5-ft. bed length, while the XD crew cab has a 6.5-ft. bed.

The Single Cab models are assembled in Canton, Miss., with the 5.6-liter V8 gasoline engine assembled in Decherd, Tenn. The 5.0-liter diesel engines are assembled by Cummins in Columbus, Ind.

The Titan is available in S, SV, SL, PRO-4X and Platinum Reserve trim levels.



Titan Single Cab

Titan Crew Cab

Titan XD Single Cab

Titan XD Crew Cab

Wheelbase

139.8 in.

139.8 in.

139.8 in.

151.6 in.

Overall length

228.1 in.

228.1 in.

231.0 in.

242.8 in.

Overall width

79.5 in.

79.5 in.

79.5 in.

79.5 in.

Bed length

8.0 ft.

5.5 ft.

8.0 ft.

6.5 ft.

Engine choices

5.6L Endurance V8; V6 (late availability)

5.6L Endurance V8; V6 (late availability)

Cummins 5.0L V8 Turbo Diesel; 5.6L Endurance V8

Cummins 5.0L V8 Turbo Diesel; 5.6L Endurance V8

Max. payload

1,950 lb.

1,610 lb.

2,910 lb. (gas)
2,420 lb. (diesel)

2,590 lb. (gas)
2,091 lb. (diesel)

Max. towing capacity

9,740 lb.

9,390 lb.

11,590 lb. (gas)
12,640 lb. (diesel)

11,270 lb. (gas)
12,314 lb. (diesel)

Max. tongue weight

973 lb.

939 lb.

1,159 lb. (gas)
1,264 lb. (diesel)

1,126 lb. (gas)
1,231 lb. (diesel)

Max. Gross Combined Weight Rating

15,300 lb.

15,300 lb.

17,700 lb. (gas)
19,450 lb. (diesel)

17,700 lb. (gas)
19,450 lb. (diesel)

Specifications source: Nissan Motor Co.
