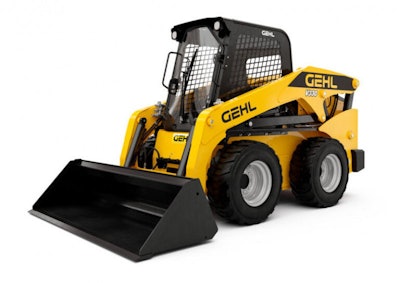

V330 COMPACT LOADERS
The GEHL V330 offers visibility, intuitive controls, precise movement and an ergonomic operator station. This machine has impressive reach at full height, making it the ideal option in applications where loading trucks plays a role. Take advantage of all its performance to facilitate your daily operations. A true beast of a machine.
CapacitiesRated Operating Capacity3300 lbsUnladen weight9090 lbs
Weight and dimensionsOverall Operating Height - Fully Raised172 inHeight to Hinge Pin Fully Raised131 inOverall Height to Top of ROPS82 inDump angle at full height42 °Dump height99 inOverall length with bucket153 inDump reach - Full height32 inRollback at ground29 °Seat to ground height41 inWheelbase49 inOverall width less bucket72 inBucket Width74 inGround clearance9 inOverall length - Less Bucket119 inClearance Radius - Front with Bucket94 inClearance Circle - Front without Bucket56 inClearance Circle - Rear69 in
PerformancesTravel Speed with Two-Speed Option - Maximum12 mphTravel speed (unladen)8 mph
WheelsStandard tyres14.00x17.5 HD
EngineEngine brandYanmarEngine model4TNV98C-NMSLV Stage VEngine normStage VGross Power (kW)53.70 kWNet Power (kW)52.70 kWMax. torque / Engine rotation294.20 Nm / 2500 rpmBattery12 VStarter (kW)3 kW
Tank capacitiesFuel tank24 US galReservoir Capacity Hydraulics11 US galDisplacement1 US gal
Noise and vibrationEnvironmental noise (LwA)101 dB(A)Whole-Body Vibration (ISO 2631-1)1.07 m/s²Vibration to whole hand/arm< 1.50 m/s²
