Caterpillar Tier 4 Final D6N Dozer

Tier 4 Final model offers a 10% to 15% boost in fuel efficiency and up to 10% better productivity

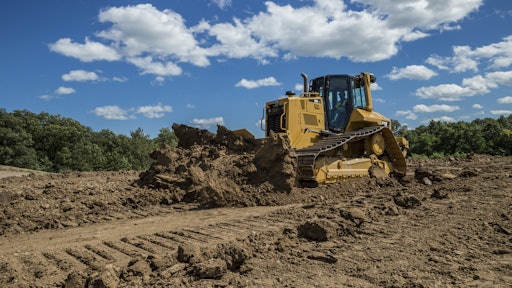

Cat D6N TTT in working application C10625181 5660c31989f23
Caterpill 10210679

The latest Cat D6N dozer delivers greater ease of operation, a 10% to 15% boost in fuel efficiency and up to 10% better productivity compared to the previous model. Plus, it offers advanced GRADE technologies as standard equipment.

Brochure: Caterpillar Tier 4 Final D6N Dozer

  • Cat Grade Control Slope Assist automatically maintains pre-established blade angles for the grade, enabling operators to finish up to 39% faster with up to 68% better surface quality and using up to 82% less operator effort
  • Cat Stable Blade complements the operator's blade-control input for attaining higher quality finish grades quicker and with less effort
  • Cat Slope Indicate displays machine cross slope and mainfall (fore/aft orientation) on the primary monitor for more accurate work on slopes with no special equipment required
  • Optional Cat Grade Control 3D (available early 2016) provides an integrated grade-control system that improves grading efficiency, accuracy and productivity in production dozing and fine-grading applications; includes the Cat AutoCarry system and AccuGrade Ready Option
  • Cat AccuGrade dealer-installed aftermarket grade-control system provides a choice of lasers for 2D flat-plane and slope work, GNSS control for complex 3D cuts and contours and/or systems using a Universal Total Station for fine and finish grading; utilizes components of the Slope Assist system
  • AccuGrade Ready Option allows easy installation or upgrade to Cat AccuGrade 2D and 3D grade-control systems
  • 166-net-hp Cat C7.1 ACERT engine uses emissions technology that requires no operator action and causes no interruption of work cycles for DPF regeneration
  • Transmission includes a lock-up clutch torque converter and standard Enhanced Auto Shift system
  • Electronically controlled, variable-speed demand fan with automatic speed adjustment
  • 36,943- to 40,446-lb. operating weight
  • 4.3- to 5.1-cu.-yd. blade capacity
  • Updated cab with more leg room, wider, easier closing doors and operator-selected electro-hydraulic mapping to fine tune implement response
  • Features a ground-level service center and two-piece engine compartment door for easier service
  • Cat Connect LINK technologies offer telematics to wirelessly connect users to equipment
