M-Series Small Wheel Loaders

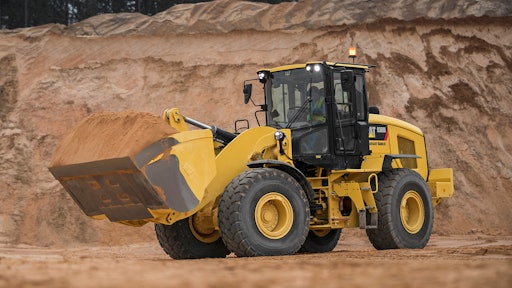

Caterpillar Swl Enhancements1

Cat's M-Series small wheel loaders, which include the 926M, 930M and 938M models, builds on the success of the K-Series predecessors and feature increased engine power and higher tip loads.

  • Now include Fusion Quick Coupler with improved visibility to attachment and electrohydraulic application system activated from the cab
  • Improved Fusion Coupler carriage for fork attachments also available
  • Cast torque tube design and updated hose routing on 930M and 938M models improves operator visibility to attachment in raised position
  • Re-engineered 930M powered by a C7.1 engine meeting Tier 4 Final standards and offering a 5% increase in gross horsepower, breakout force and full-turn tip load
  • Available LED lighting options and standard, premium and deluxe seat options
  • Perfect Parallelism feature uses input from rotary sensors in linkage to provide level lift with ± 2-degree accuracy
  • Tier 4 Final Cat C7.1 aCERT engine with clean emissions module, fit-for-life diesel particulate filter and SCR system
  • Step-less, four-range, electronically controlled intelligent hydrostatic drive system features operator selected power-train modes including a conventional Hystat mode, Torque Converter mode and Ice mode
  • Standard mode features a Power-By-Range logic to boost available power in range 4
  • Performance mode boosts engine speed to 1,800 rpm
  • Generation II Optimized Z-bar loader linkage
  • Generation II lift-arm design enhances forward visibility
  • Redesigned torque tube on standard lift linkages maximizes visibility
  • Include electrohydraulic controls, independent, dedicated, load-sensing variable-displacement pumps and redesigned secondary display
  • Optional Integrated Auto-lube system
