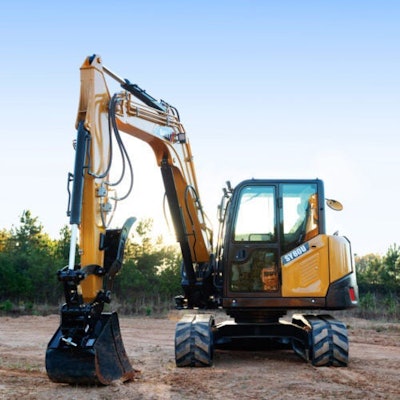

SY80U EXCAVATOR
OPERATING WEIGHT 19,401 LB 8,800 kg
GROSS POWER 73 HP 54.4 kW
DIG DEPTH 14' 10.5 4,534 mm
Built tough with reinforced boom, arm, swing platform and undercarriage, the SY80U boasts an efficient and reliable Yanmar T4F engine. Featuring joystick controls and a bi-directional auxiliary hydraulic system, this compact excavator proves you don't have to trade size for performance. The comfortable cockpit features heating and AC for all-day operation in any climate, and the maintenance-friendly design allows for quick access to all service points to minimize downtime.
Boom swing functionality allows for offset digging in confined areas Load-sensing hydraulic system provides increased efficiency and control
Powerful Yanmar T4F engine
Reduced tail swing
WHY SANY SWING BOOM EXCAVATORS?
SANY's swing boom excavators are the champions of confined spaces. Offered in a variety of machine configurations, these mini and small excavators fit various applications like landscaping, utilities, general construction, sewer and land management. All models feature standard auxiliary lines to run powered attachments. The SY35U through the SY80U boast spacious, comfortable, climate-controlled cabs to keep you cool in the summer and warm in the winter.
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPARE ADD A MODEL TO COMPARE MODEL SY80U
OVERALL DIMENSIONS
HIDE Boom Length 3499 mm 11' 6 Stick (Arm) Length 2051 mm 6' 9 Transport Length 7010 mm 23' Transport Width 2200 mm 7' 3 Transport Height 2550 mm8' 5 Upper Structure Width 2200 mm 7' 3 Cab Height Blade Height 410 mm 16 Track Width (standard shoe) 450 mm 18 Track Gauge 1750 mm 5' 9 Ground Clearance (minimum) 365 mm 14 Tail Swing Radius 1480 mm 4' 10 Track Length on Ground 2315 mm 7' 7 Track Length 2915 mm 9' 7
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 8800 kg 19,401 lb Ground Pressure 37.9 kPa 5.5 psi Engine Yanmar 4TNV98CT Gross Power 54.4 kW 73 hp
Hydraulics Load Sensing with Pilot Controls
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 102.2 l/min 27 gal/min Operating Pressure (maximum) 26.3 MPa3814 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 26.3 MPa 3814 psi Travel Speeds (maximum) 2.6/4.5 kph 1.6/2.8 mph Travel Effort (maximum) 70 kN 15,736 lbf Grade Capability 35°
Swing Motor Axial Piston with Gear Reduction
Swing Pressure (maximum) Swing Speed (maximum) 10.2 rpm
Undercarriage (standard) Belted Rubber Track
Track Shoe Width (standard) 450 mm 18 Track Rollers (per side) 5 Carrier Rollers (per side) 1
WORKING RANGE
HIDE Boom Length 3499 mm 11' 6 Stick (Arm) Length 2051 mm 6' 9 Maximum Digging Height 7315 24' Maximum Dumping Height 5436 17' 10 Maximum Digging Depth 4534 14' 10.5 Maximum Vertical Wall Digging Depth 2490 8' 2 Maximum Reach at Ground Level 7290 23' 11 Minimum Swing Radius 2413 7' 11
