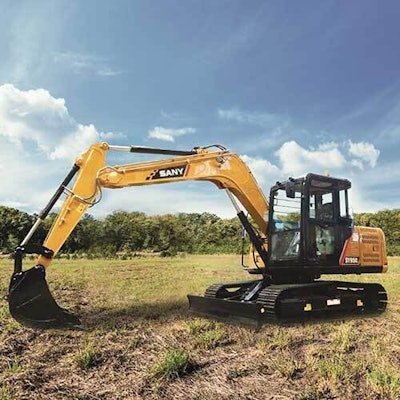

SY95C EXCAVATOR
20,238 LB 9,180 kg
GROSS POWER 72 HP 53.7 kW
DIG DEPTH 14' 2 4,330 mm
Perfect for small- and mid-sized projects, SANY's SY95C compact excavator brings more than power and performance to your workforce it brings efficiency, too. Designed with load-sensing hydraulics that work to optimize and improve operational efficiency, this excavator can improve your working speed and save you as much as 10% on fuel costs. Plus, with reliable and robust powertrain and hydraulic systems, the SY95C makes both tough work and difficult terrain look easy.
Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications Optimized load sensing hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
THE INVESTMENT THAT KEEPS ON RETURNING
Simply put, these machines are the achievers of any jobsite. They deliver all day long and they come loaded with standard features and the industry's strongest standard warranty. They're reliable and durable to take you the extra mile.
SAFETY
At SANY America, our equipment is designed with safety and service in mind. Before any machine hits the ground, it receives a pre-delivery inspection to ensure proper and safe operation. Standard safety features on all models include, but are not limited to, high visibility, intuitive control layouts, ergonomic joysticks and switches, adjustable and comfortable operator seats, camera systems and LED work light packages.
SERVICE
When we say that SANY machines are built to endure, we’re really talking about service. SANY equipment is intentionally designed to be easily and efficiently serviced, with features such as wide compartment doors and ground level access where possible to make maintenance more efficient. Because ease of service means back in service.
WE’VE GOT YOUR BACK
To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with robust standard warranties. That’s our commitment to keeping your fleet running at peak performance. Our network of local dealers will partner with you for routine maintenance and be there for warranty repairs. You can trust SANY to keep you moving, year-round.
SPECIFICATIONS & COMPAREADD A MODEL TO COMPARE MODEL SY95C
OVERALL DIMENSIONS HIDE Boom Length 4000mm 13' 1 Stick (Arm) Length 2000mm 6' 7 Transport Length 6560mm 21' 6 Transport Width 2260mm 7' 5 Transport Height 3200mm 10' 6 Upper Structure Width 2160mm 7' 1 Cab Height Blade Height 420mm 17 Track Width (standard shoe) 450mm 18 Track Gauge 1810mm 5' 11 Ground Clearance (minimum) 360mm 14 Tail Swing Radius 1885mm 6' 2 Track Length on Ground 2340mm 7' 8 Track Length 2980mm 9' 9
TECHNICAL SPECIFICATIONS
HIDE Operating Weight 9180 kg20,238 lb Ground Pressure 38.6 kPa 5.6 psi Engine Yanmar 4TN98CT-VSY Displacement 3.3 L 201.4 in3 Gross Power 53.7 kW 72 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum) 199.5 L/min 52.7 gal/min Operating Pressure (maximum) 26.3 MPa 3814 psi Power Boost Pressure (maximum)
Travel Motor Axial Piston with Park Brake
Travel Pressure (maximum) 26.3 MPa3814 psi Travel Speeds (maximum) 2.9 / 5.0 km/hr1.8 / 3.1 mph Travel Effort (maximum) 83.0 kN 18,659 lbf Grade Capability 35°
Swing Motor Axial Piston with Swing Brake
Swing Pressure (maximum) 21.5 MPa 3118 psi Swing Speed (maximum) 11 rpm Undercarriage (standard) Steel Track Track Shoe Width (standard) 450 mm 18 Track Rollers (per side) 5 Carrier Rollers (per side) 1
WORKING RANGE
HIDE Boom Length 4000 mm 13' 1 Stick (Arm) Length 2000 mm 6' 7 Maximum Digging Height 7260 mm 23' 10 Maximum Dumping Height 5210 mm 17' 1 Maximum Digging Depth 4330 mm 14' 2 Maximum Vertical Wall Digging Depth 3080 mm 10' 1 Maximum Reach at Ground Level 6660 mm21' 10 Minimum Swing Radius 1990 mm 6' 6
