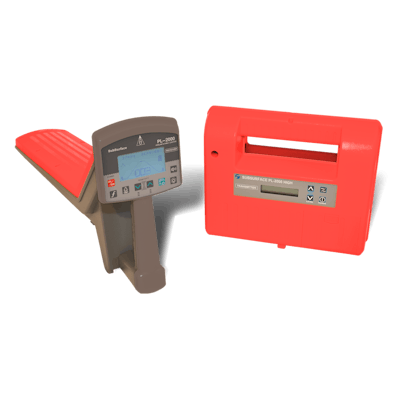

The PL-2000 Low Transmitter utility locator has 3.0 watts power output in the Direct Connection Mode, allowing locates for much longer distances than the lower power typical in other transmitters.
- Light-weight, balanced PL-2000 Receiver offers four different operating modes
- “Peak” mode for most accurate locates and for depth measurement
- “Null” mode, for fast, easy tracking
- “Dist” mode, for even longer distances
- “Sonde” mode for locating sewer sondes and measuring their depths
- Three “active” frequencies at 512 Hz, 8.125 kHz, and 26.725kHz
- Two “passive” frequencies at 50/60 Hz (current flowing A/C) and Radio (15 khz - 25 kHz)
- Simultaneously transmit both 8.125 kHz and 26.725 kHz in the “Mix” mode in the Transmitter
- Detects poor “ground” conductivity at the Transmitter in the Direct Connection operating mode
- Current measurement in depth function indicates if the measured depths are correct for congested utilities
- “Auto Off” functions in both Transmitter and Receiver shut off their operations after a set time period if they are accidentally left “On”
